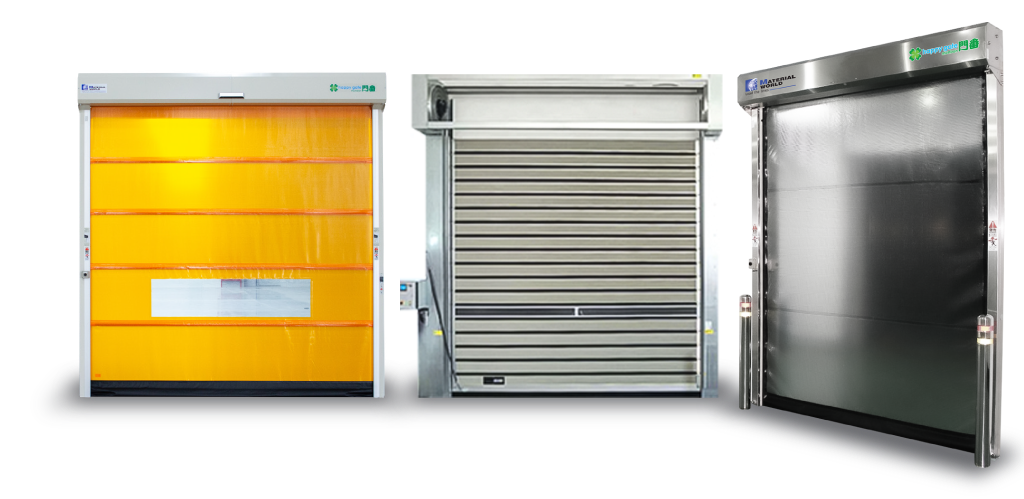

High Speed Door

High Speed Automatic Doors for indoor and outdoor use. Perfect solution for all your operational needs. With fast opening and closing, equipped with advanced safety features. Ensure reliability and security in any situation.

High Speed Door (G Series)

High Speed Door (G Series)
High Speed Door (G Series)

Pipe-less high-speed door is perfect for indoor installation, offering faster operation than traditional door systems. Its rapid opening and closing support high-traffic environments, making it ideal for the food manufacturing sector, where hygiene and temperature control are critical.

Highest opening speed of 3.2 m/sec in the industry.

Highest opening speed of 3.2 m/sec in the industry.

Responds quickly for efficiency.

Dust and Insect Protection

Dust and Insect Protection

Safeguard your space from dust and pesky insects.

ECO Mode Function

ECO Mode Function

Save energy and reduce costs.

Self-Repairing System, Convenience in case of power failure.

Self-Repairing System, Convenience in case of power failure.

Ensures smooth and continuous operation

High durability, silence, and saving maintenance.

High durability, silence, and saving maintenance.

Operates quietly without disturbing your rest.

Specifications

  1. Width (mm)
    600 - 4,500
  2. Height (mm)
    600 - 4,500
  3. Meterial Body
    Steel Plate, Aluminium Anodize, Stainless Hairline (SUS304)
  4. Meterial sheet
    Soft PVC and Polyester



High Speed Door (R Series)

High Speed Door (R Series)
High Speed Door (R Series)

High-Speed Automatic Door for Outdoor Installation
This high-speed automatic door model is designed for outdoor use, offering high durability and resistance to wind pressure. It is ideal for exterior applications or indoor areas with significant air pressure differences.

Strong and Wind Resistant

Strong and Wind Resistant

Protects against dust and insects

Protects against dust and insects

Settings can be adjusted via a display screen

Settings can be adjusted via a display screen

New roller set offers smooth operation with minimal noise during opening and closing

New roller set offers smooth operation with minimal noise during opening and closing

Specifications

  1. Width (mm)
    600 - 10,000
  2. Height (mm)
    1,000 - 6,000
  3. Meterial Body
    Steel Plate, Aluminium Anodize, Stainless Hairline (SUS304)
  4. Meterial Sheet
    Soft PVC and Polyester



High Speed Door (Stand Alone)

High Speed Door (Stand Alone)
High Speed Door (Stand Alone)

This model is designed for easy transport and quick installation. The control system is integrated within the door structure, allowing it to be installed anywhere with an electrical power source. It is suitable for various applications, including temporary installations

Opening and closing speed of up to 3.2 meters per second

Opening and closing speed of up to 3.2 meters per second

Easy to install and relocate

Easy to install and relocate

No need for walls or supporting structures

No need for walls or supporting structures

Specifications

  1. Width (mm)
    800 - 2,500 mm
  2. Height (mm)
    1,800 - 2,500 mm
  3. Meterial Body
    Steel Plate, Aluminium Anodize, Stainless Hairline (SUS304)
  4. Meterial Sheet
    Soft PVC and Polyester

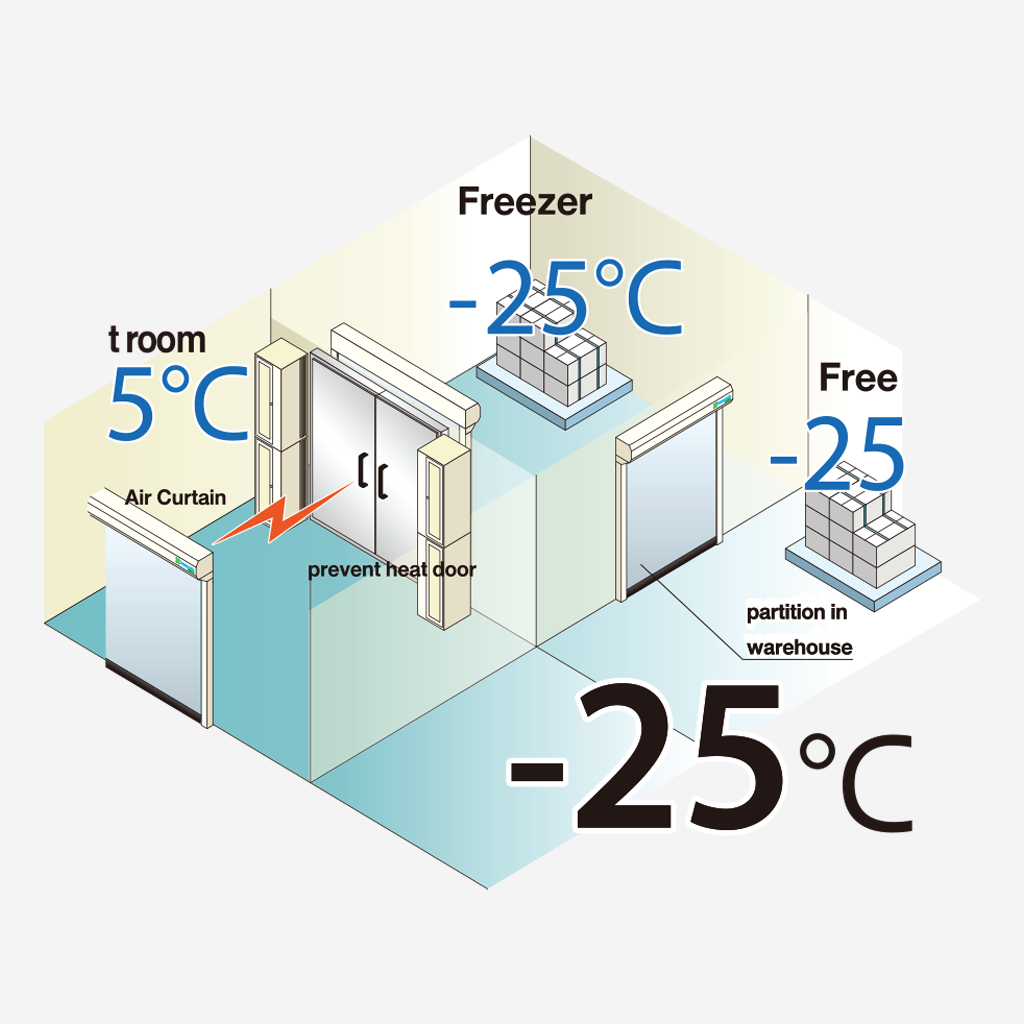

High Speed Door Cold Storage

High Speed Cold Storage Door
High Speed Cold Storage Door

High Speed Cold Storage Door is suitable to control the temperature between -5 Cto -25 "C indoo
• Preventing adhesion of frost and drop water
• Save energy and improve quality control about temperature changing in warehouse
• Setting compact

Specifications

  1. Width
    800 - 3,500 mm
  2. Height
    1,000 - 3,500 mm
  3. Meterial Body
    Stainless Hairline (SUS304)
  4. Meterial sheet
    Soft PVC and Polyester

Color

Body

Body

Stainless Hairline (SUS304)

Sheet

Sheet

Special clear sheet for low temperature

High Speed Door
High Speed Door
High Speed Door
Warehouse

Warehouse

Logistic

Logistic

Department Store

Department Store

Factory

Factory

Hotel

Hotel

Government

Government



Cloud Network

The temperature, humidity, atmospheric pressure, and gas around the shutter can be manage by the cloud system.Explanation of setting and maintenance methods with videos and illustrations via MONBAN APP

Send configuration information to the MONBAN APP via cloud

Send configuration information to the MONBAN APP via cloud

Share on-site information with Call & Support center

Share on-site information with Call & Support center

Receive on-site information

Receive on-site information

Send setting information

Send setting information

Download setting information

Download setting information

Upload On-site information

Upload On-site information

Happy gate Cloud monban

Smooth opening and closing with Sheet shutter explosion-proof for area that does not use electricity

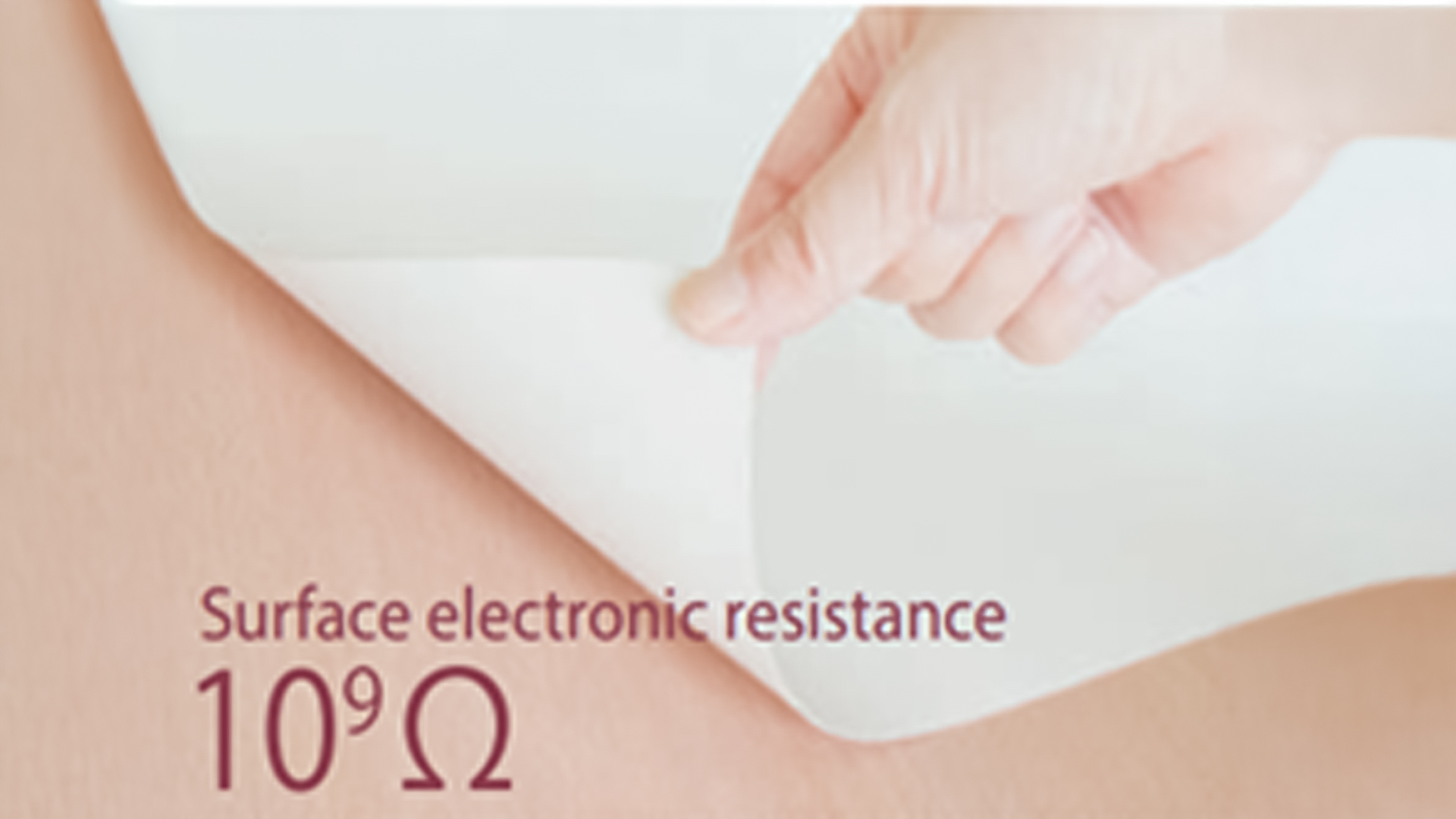

Electrification-proof nonflammable sheet
Electrification-proof nonflammable sheet

nonflammable & flameproof certified Acquired nonflammable and flameproof certification for use in any explosion-proof area.

Nonflammable certifcation number NM-3553 Fireproof certified product number F-24171 Thickness: 0.53mm

Rat-protection bottom sheet
Rat-protection bottom sheet

blended with high concentration capsaicin

New develop from the volce of customer such as food factory, that rats biting the sheet and enter Inside problem.

Fireproof certified product number F-25041
Thickness: 0.53mm

Type : All Air

  1. Model
    G23A , G33A
  2. Manufacturable Dimension (Wight(mm))
    800-3000 , 3100-4000
  3. Manufacturable Dimension (Hight(mm))
    2000-4000
  4. Driving force
    2 Air cylindesr
  5. Control
    Air control panel (laminated resin manifold build-in frame)
  6. Opening speed (m/s)
    1.0 , 0.8
  7. Closing speed (m/s)
    0.7
  8. Emergency operations
    Raise bottom end of sheet
  9. Air pressure
    More than 0.5MPa
  10. Consumption air amount (maximum)
    45L , 47L
  11. Using frequency
    60 times / hour
  12. Using environment
    Ambient temperature : more than-10 %C~ less than 40 *C (except frozen state) Ambient humidity : RH85% or less.

Type : Air + Electric

  1. Model
    G23E , G33E
  2. Manufacturable Dimension (Wight(mm))
    800-3000 , 3100-4000
  3. Manufacturable Dimension (Hight(mm))
    2000-4000
  4. Driving force
    2 Air cylindesr
  5. Control
    Air control panel (laminated resin manifold stored in frame) Electric control panel (installed outside explosion-proof area)
  6. Opening speed (m/s)
    1.0 , 0.8
  7. Closing speed (m/s)
    0.7
  8. Emergency operations
    Raise bottom end of sheet
  9. Air pressure
    More than 0.5MPa
  10. Consumption air amount (maximum)
    45L , 47L
  11. Using frequency
    60 times / hour
  12. Using environment
    Ambient temperature : more than-10 %C~ less than 40 *C (except frozen state) Ambient humidity : RH85% or less.

Warning indication

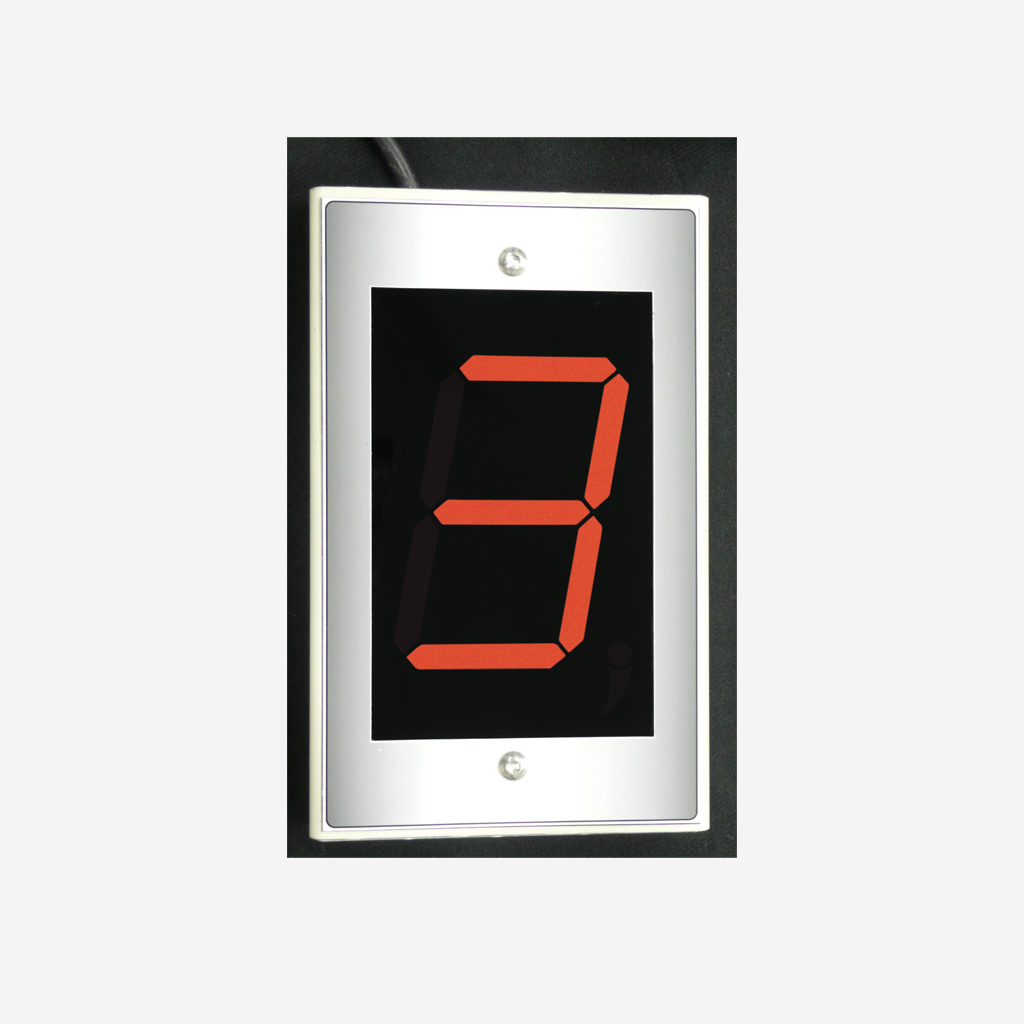

Count down monitor
Count down monitor


• It is possible to count 1-9secplease, use and adjust when upper limit stop.
• Only KV controler.
• Electric power : DC24V
• Size : W97.2xH156xD18.2(explosion model)

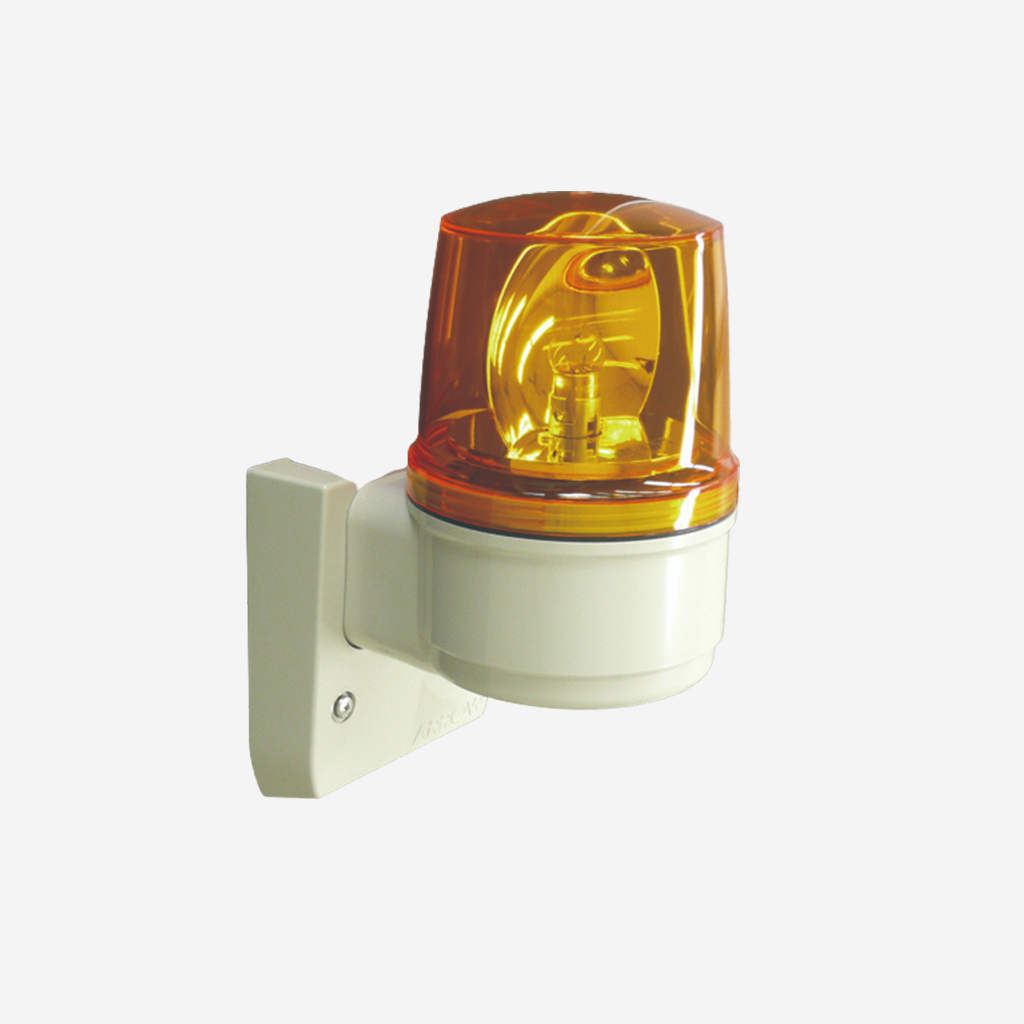

Revolving light
Revolving light


• It is neccessary special relay base
• To prepare ashing light with buzzer. Please,specify when order.
• Electric power : AC200V
• Size : W116xH220xD152.5(lens $110)

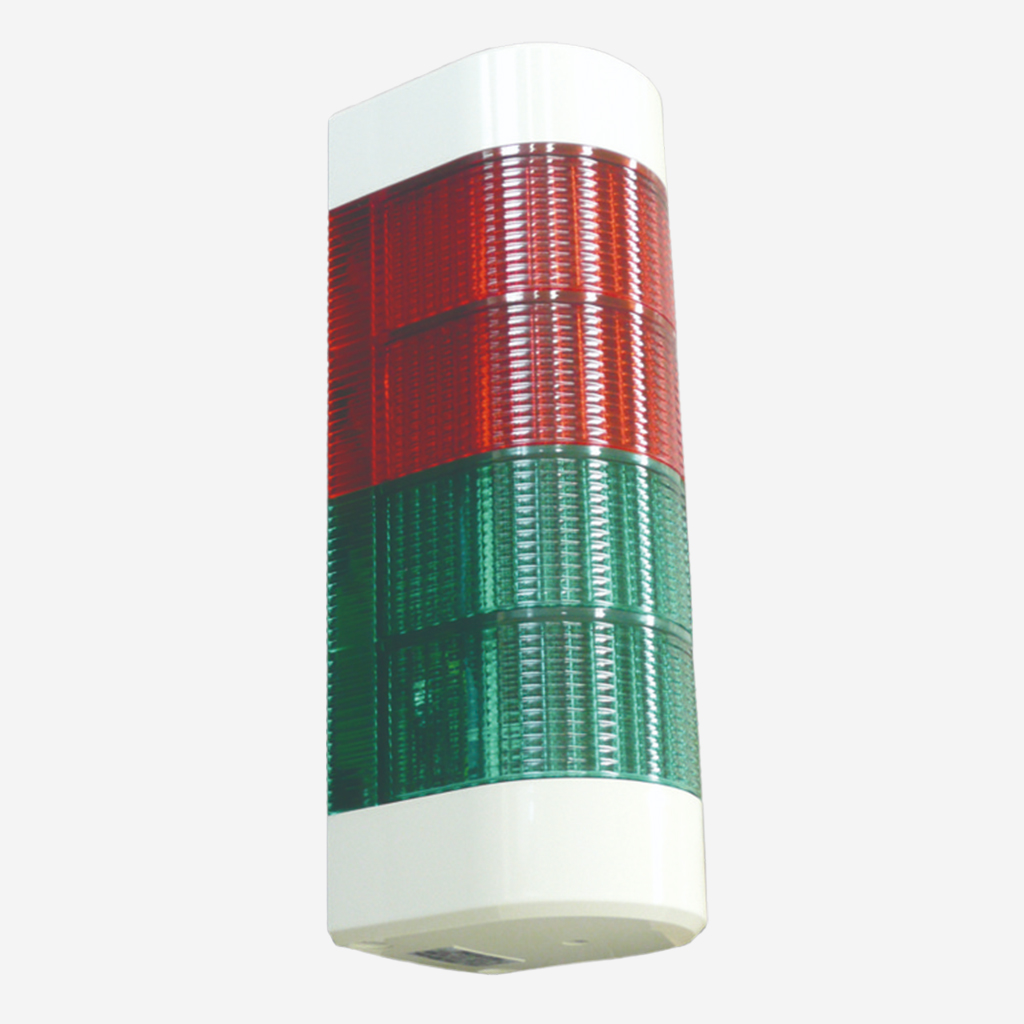

Traffic light
Traffic light


• It is necessary separate placement relay base.
• Electric power : DC24V
• Size : W70xH229xD80

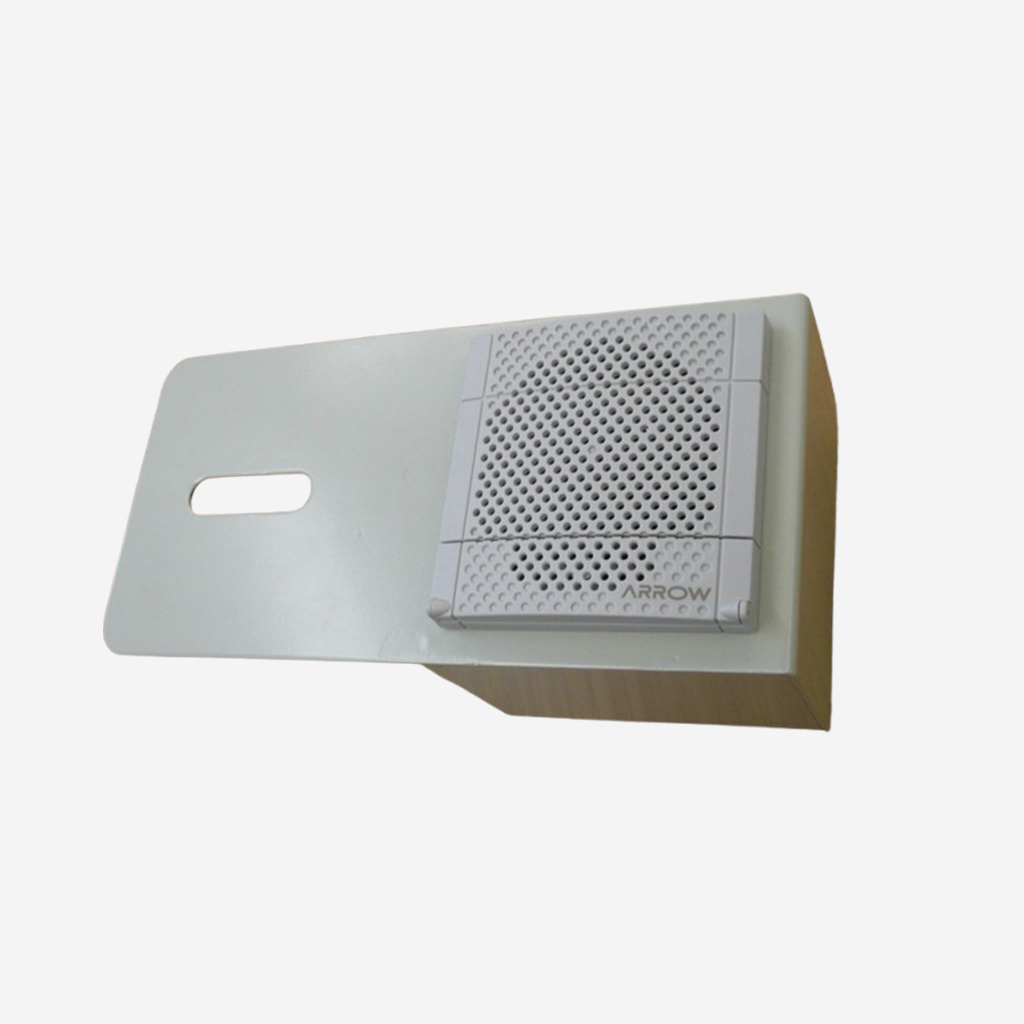

Melody buzzer
Melody buzzer


• Maximum sound pressure is in 1 m frontward.
•16 kind of tone color,sound pressure90db.
• It is neccessary special relay base.
• Electric power : AC200V
• Size : W100xH88xD85.3

Obstacle detect sensor

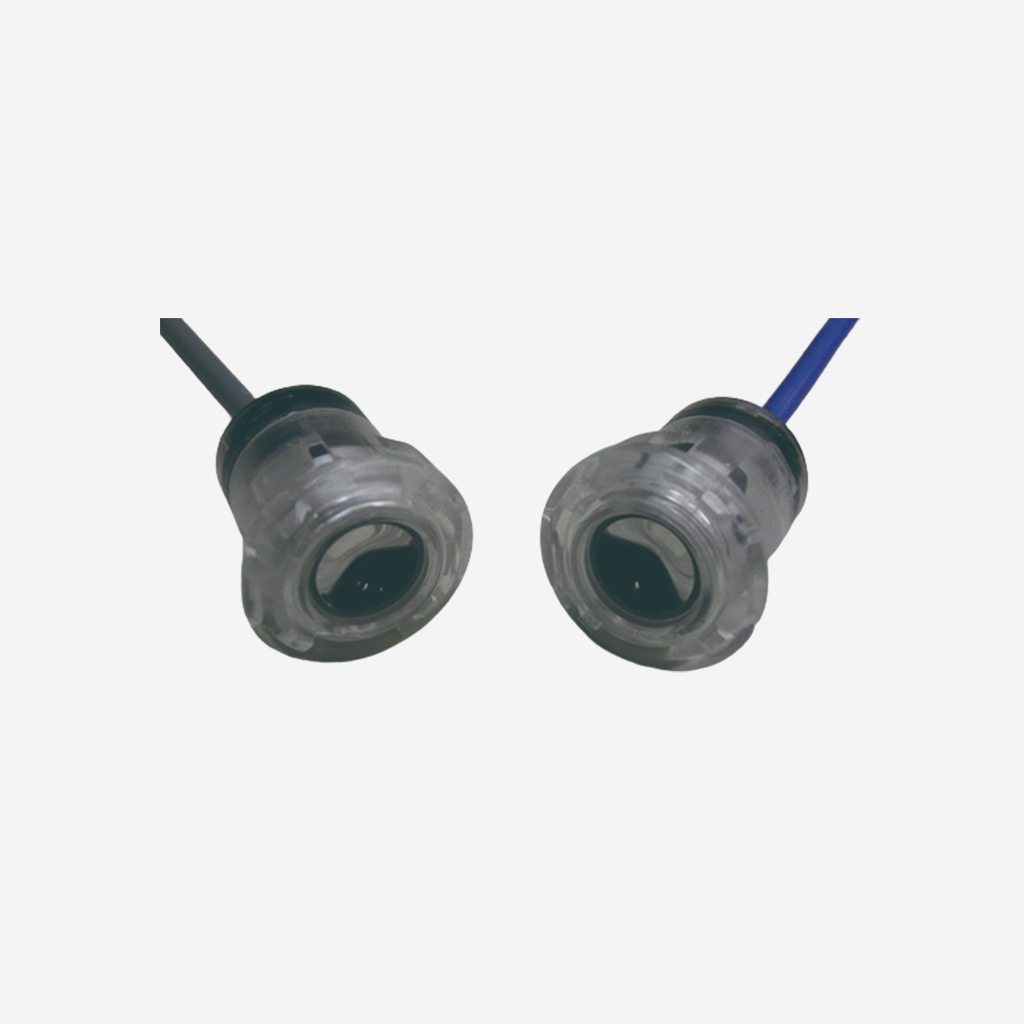

PHA model embedded type
PHA model embedded type

Detective distance : 10m
Electric power : DC12~24V
Accessary cable : 2m

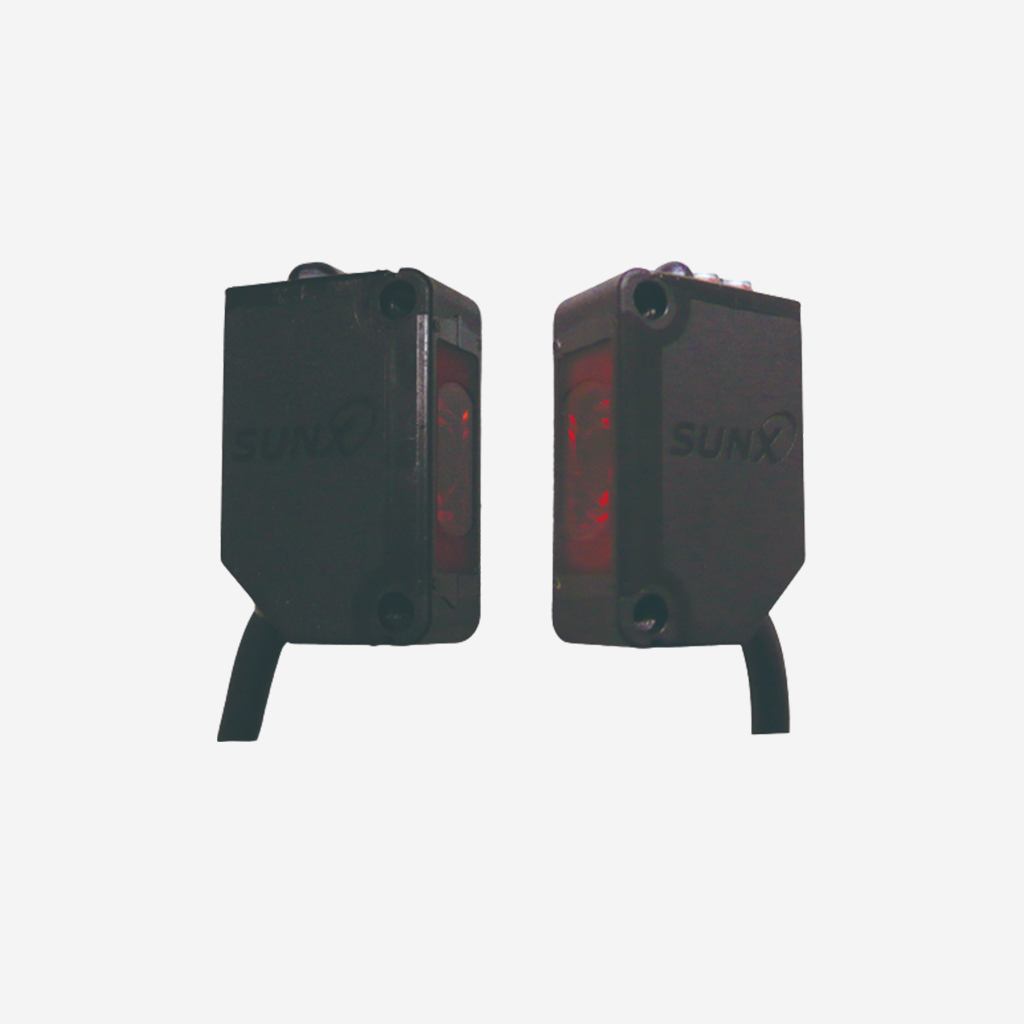

PHB model embedded type
PHB model embedded type

Detective distance : 10m
Electric power : DC24V
Accessary cable : 15m(projector),5m(recieving light)

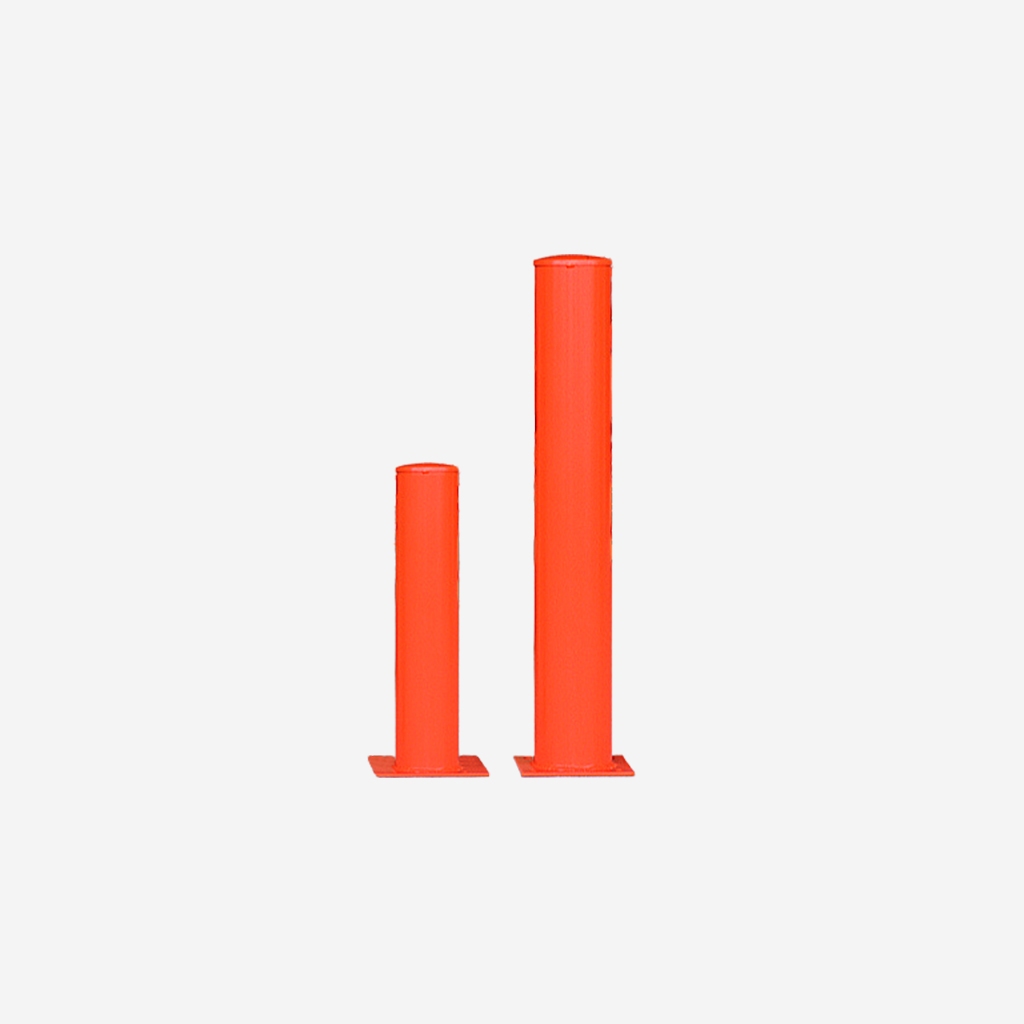

Guard pole for protect touching

With the base
With the base

Big diameter : 139.8X920
Small diameter : 6114.3X420
Base part : 200X200

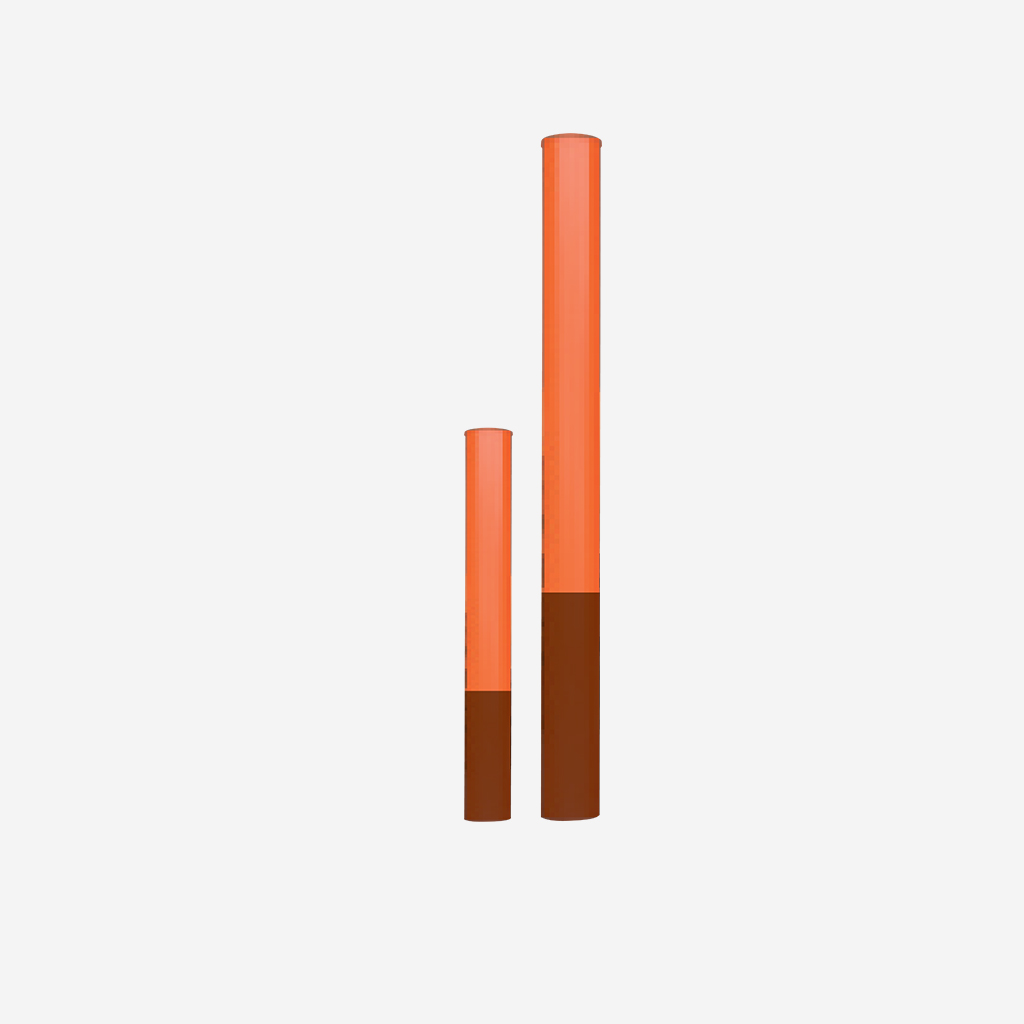

Embedded type
Embedded type

Big diameter : 139.8 x length 1620
embedded part : 500 mm
Small diameter : 6114.3 x length 720
embedded part : 200 mm
