Multi Pallet Handler
KAUP Multi Pallet Handlers improve in-plant logistics by transporting multiple pallets or loads simultaneously, contributing to efficient and cost-effective operations. Their construction with T-profiles, C-profiles, and sometimes round profiles ensures high stability, long service life, and minimal maintenance.
Specification
The newly designed Double Pallet Handler range T429C set new standards for Multi Pallet Handlers in lost load centre, residual capacity and visibility through and over the attachments to the fork tips and load. The practice orientated solid construction from T-profiles and C-profiles ensures highest stability and long operating hours with extended intervals between servicing and a minimum of required maintenance. At the same time the new Double Pallet Handler consumes 20% less energy.
Qualities
ㆍSynchronized for quicker working speeds
ㆍIndependent sideshift serially
ㆍOptional: single control of seperate fork pairs - adjustment of opening range to suit different types of pallets

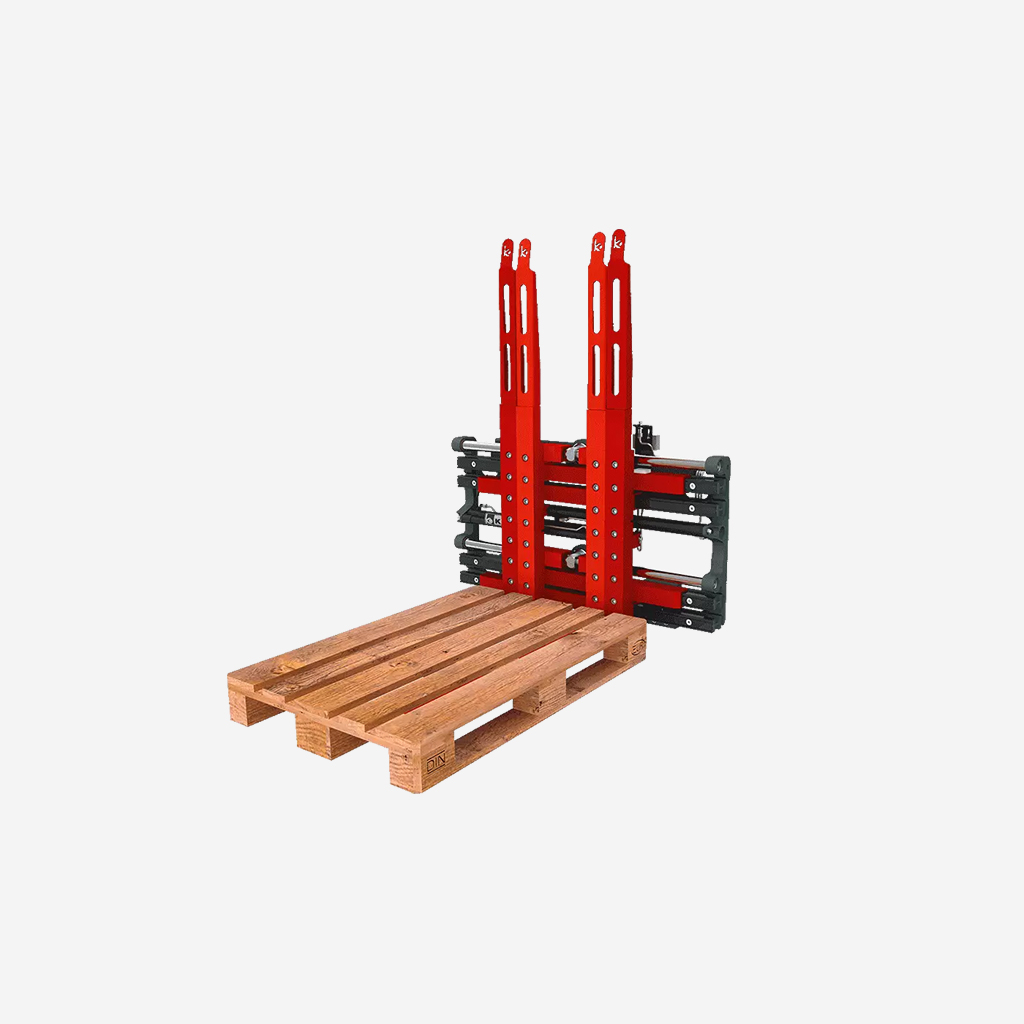

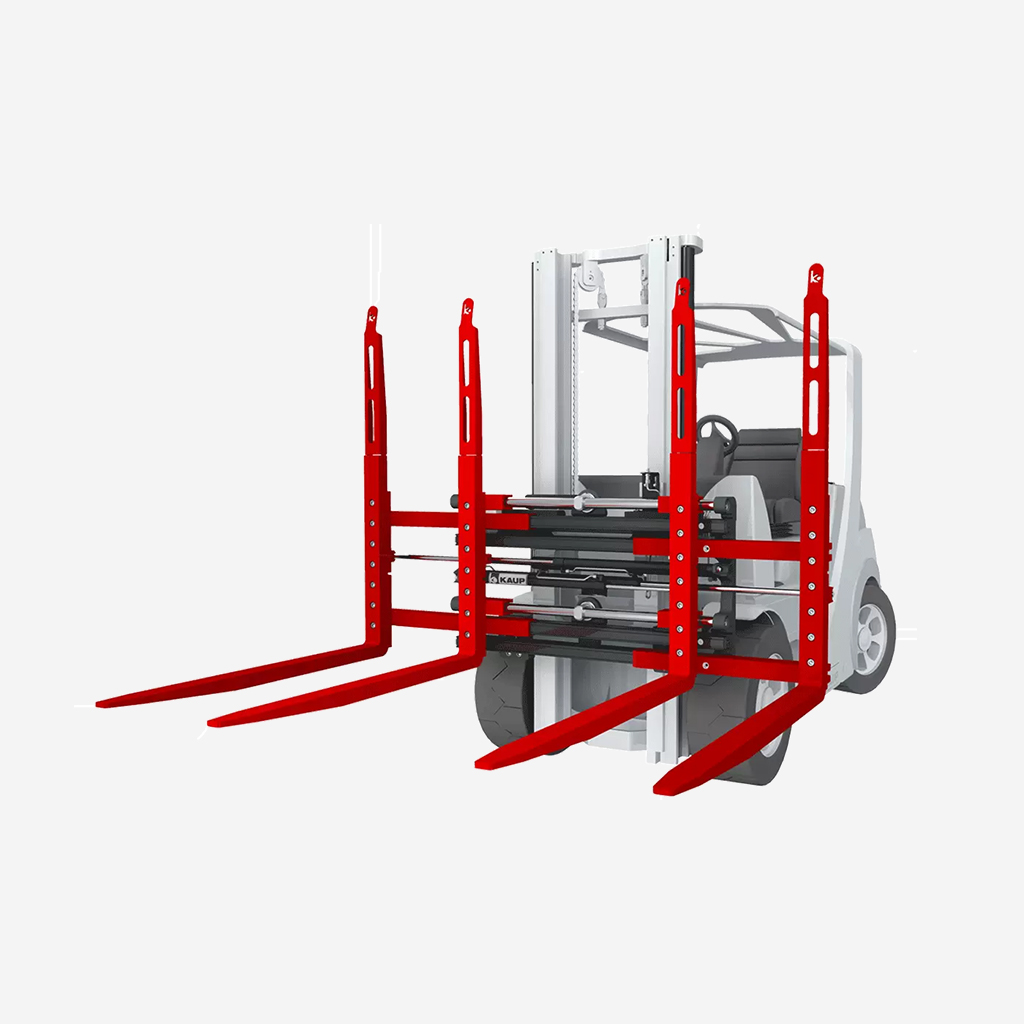

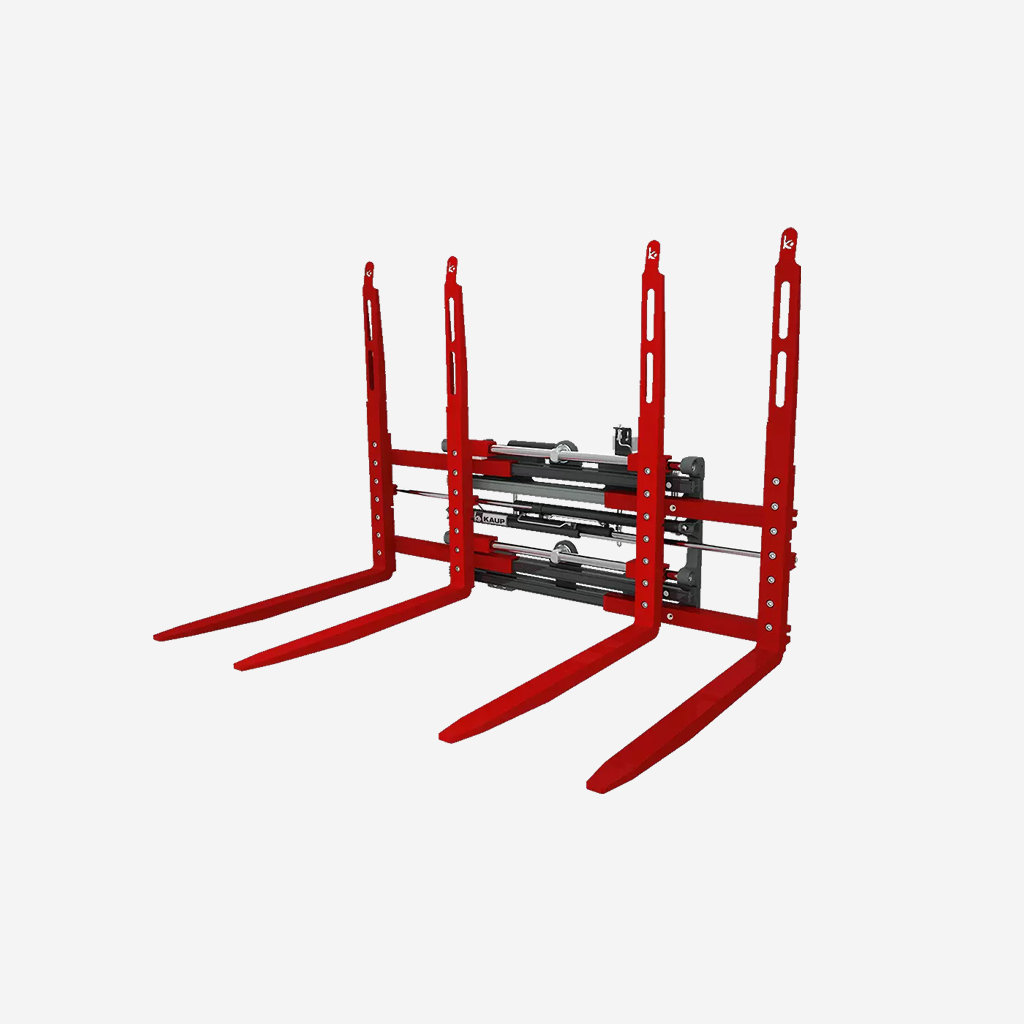

Pallet Handler T429C

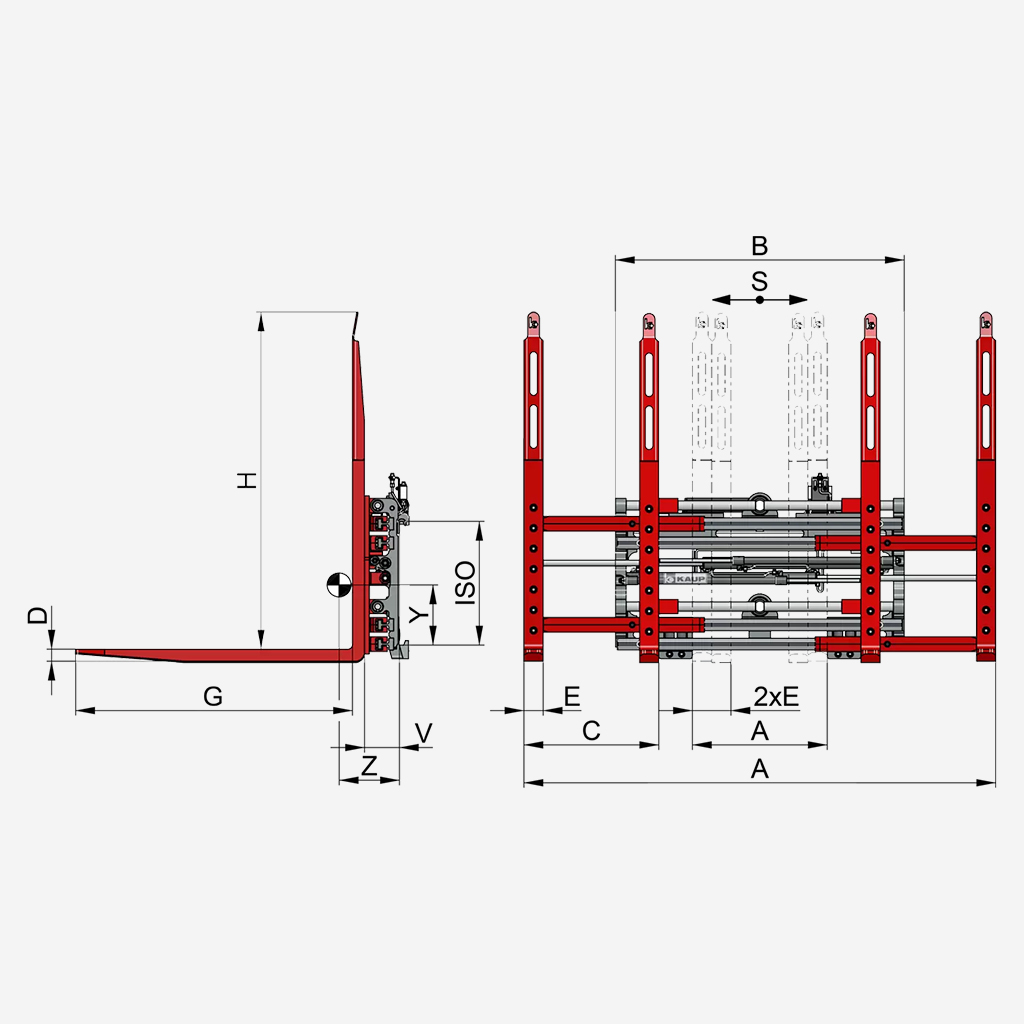

ㆍMeasurement „C” = alternatively 560 / 650 / 700 mm mechanically or hydraulically adjustable (solenoid valve required).
ㆍMeasurement „H” = standard height 1.400 mm, other lengths and forms upon request.
ㆍDouble solenoid valve for additional individual adjustment for each pair of forks available upon request. (add-on price)
ㆍ1) Optional with fork thickness 40 mm. (add-on price)
ㆍ2) Fork length optional 1.000 mm, 1.150 mm or 1.200 mm. (no add-on price)
ㆍ3) for handling of europallets crosswise we recommend the 1.400 mm wide body version
ㆍ4) Standard with wider fork shanks.
ㆍLocating claw on fork tip available upon request.

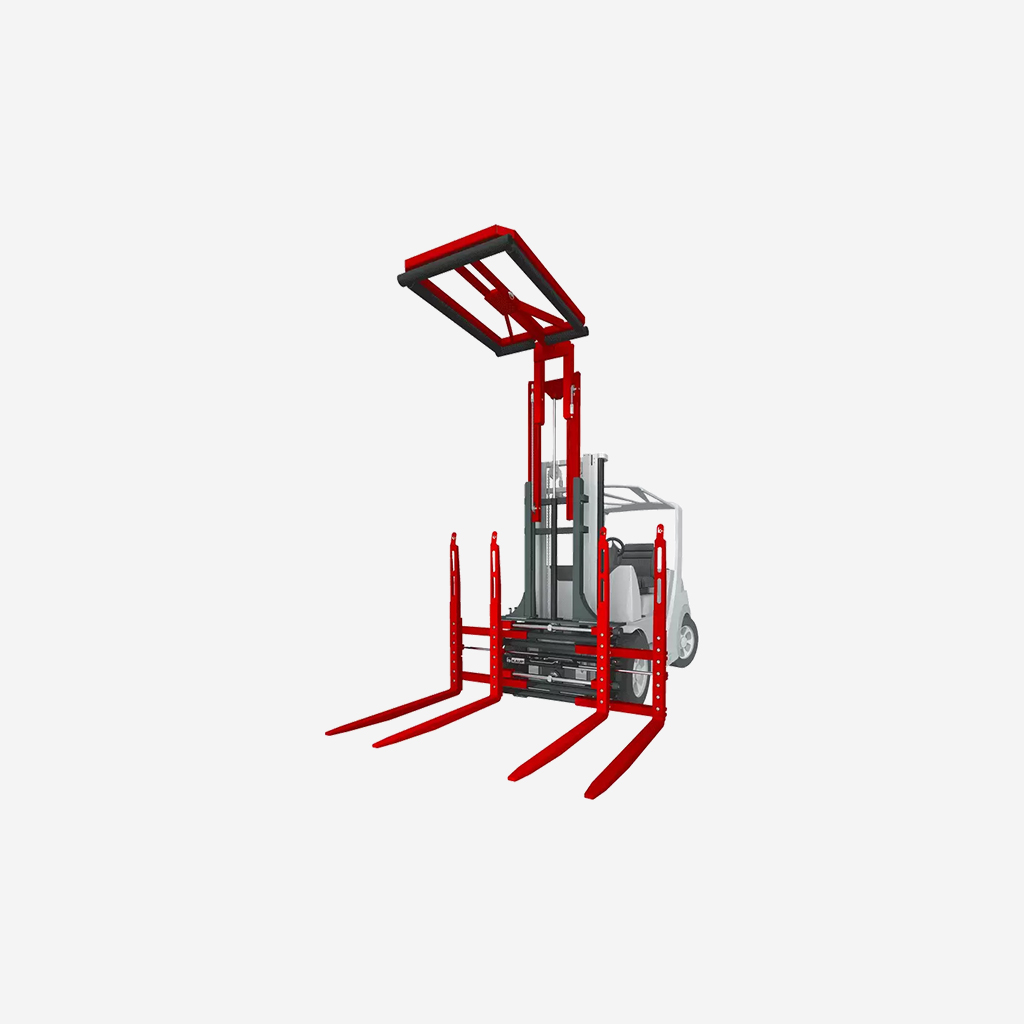

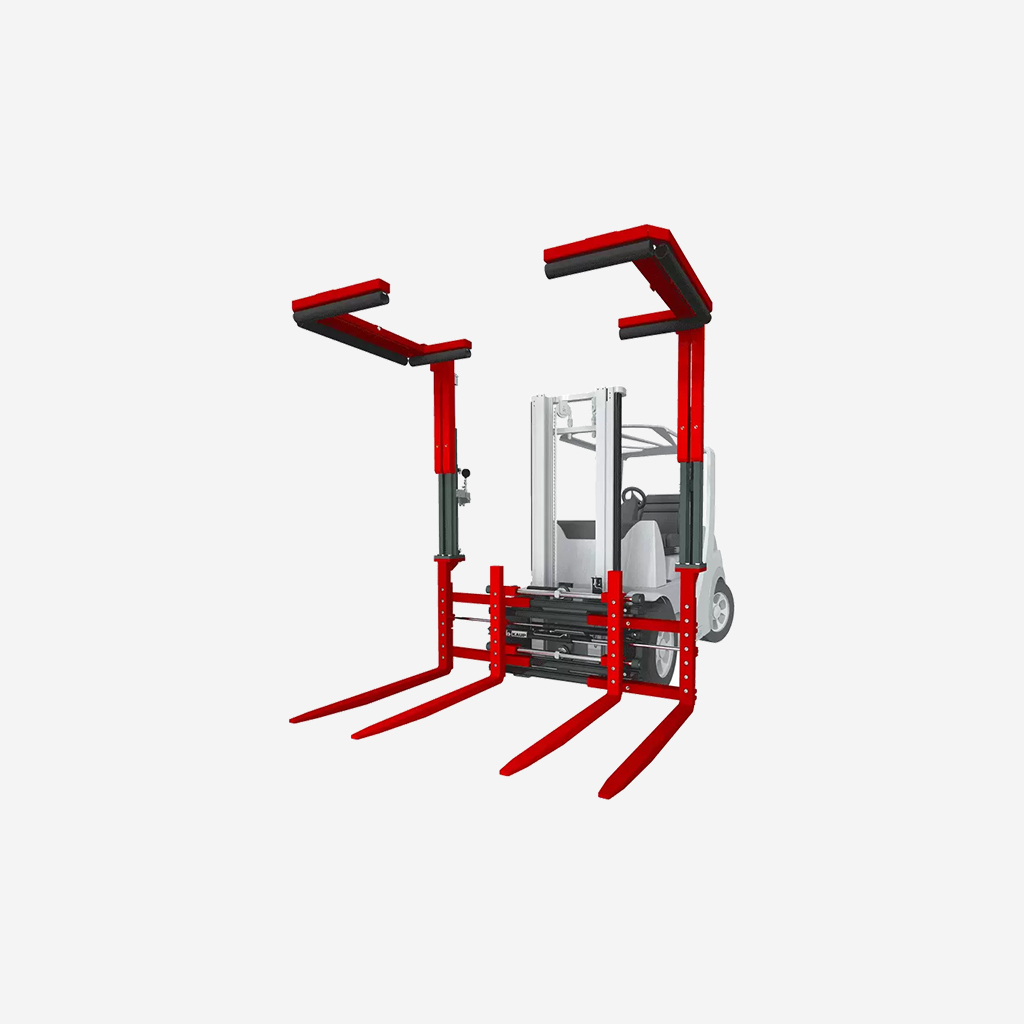

ㆍDouble Pallet Handler with Load Stabilizer available upon request.

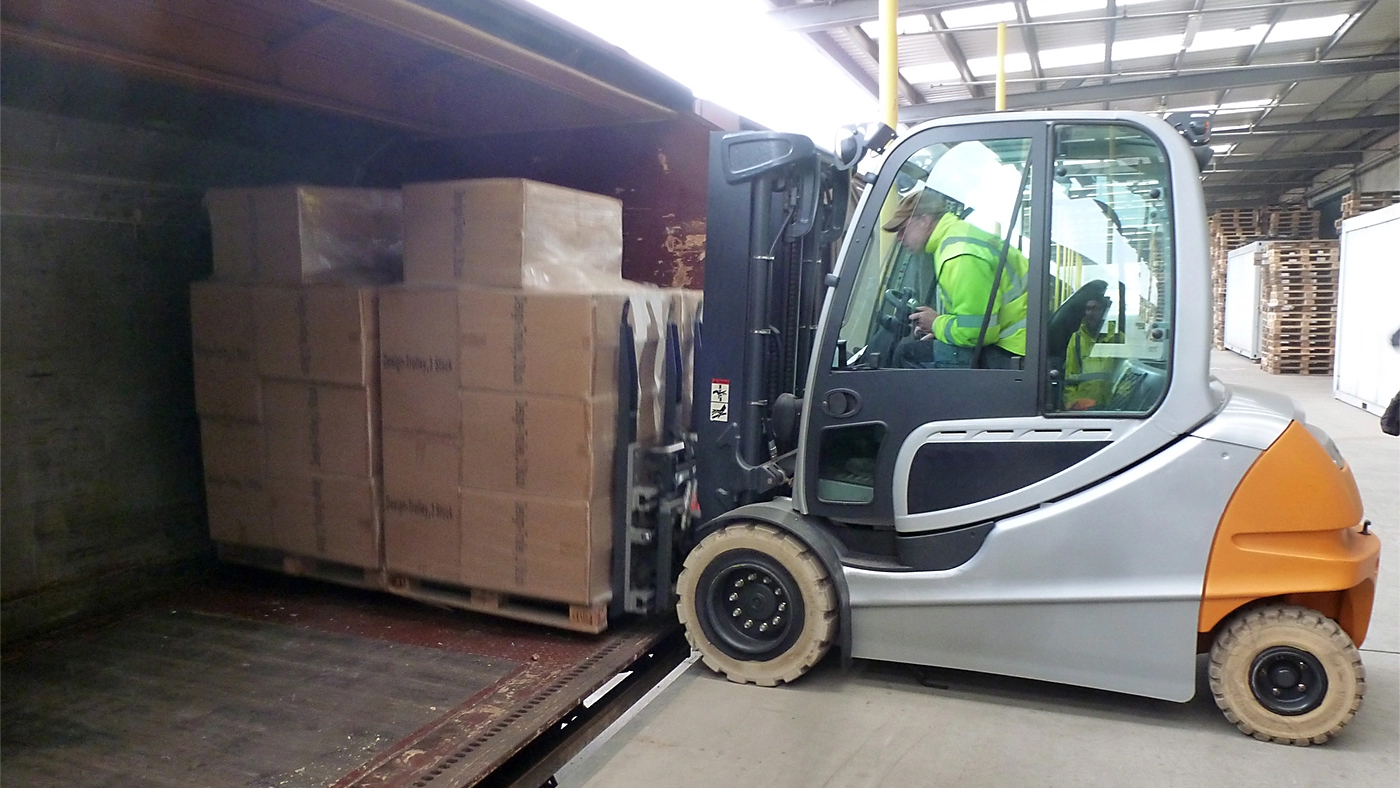

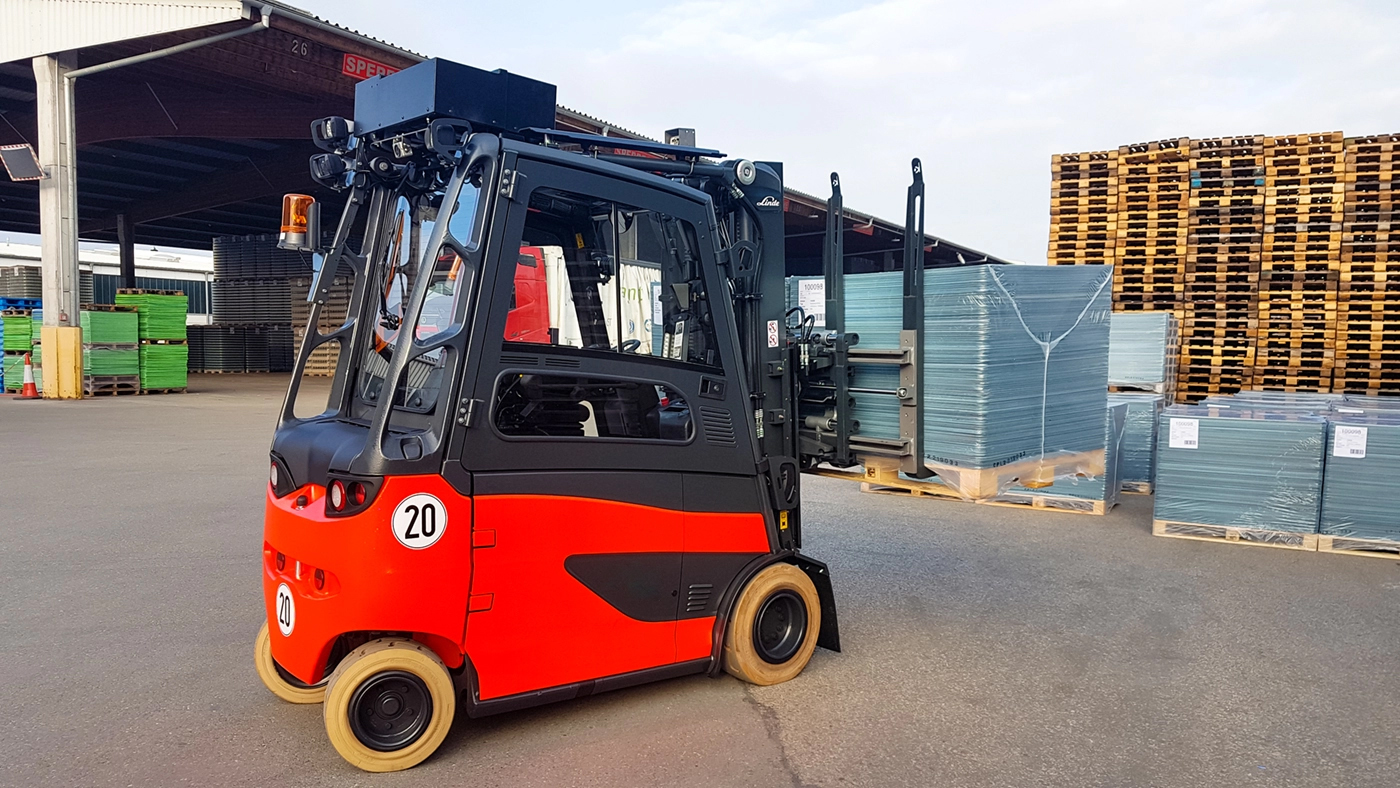

Multi-Pallet Handling

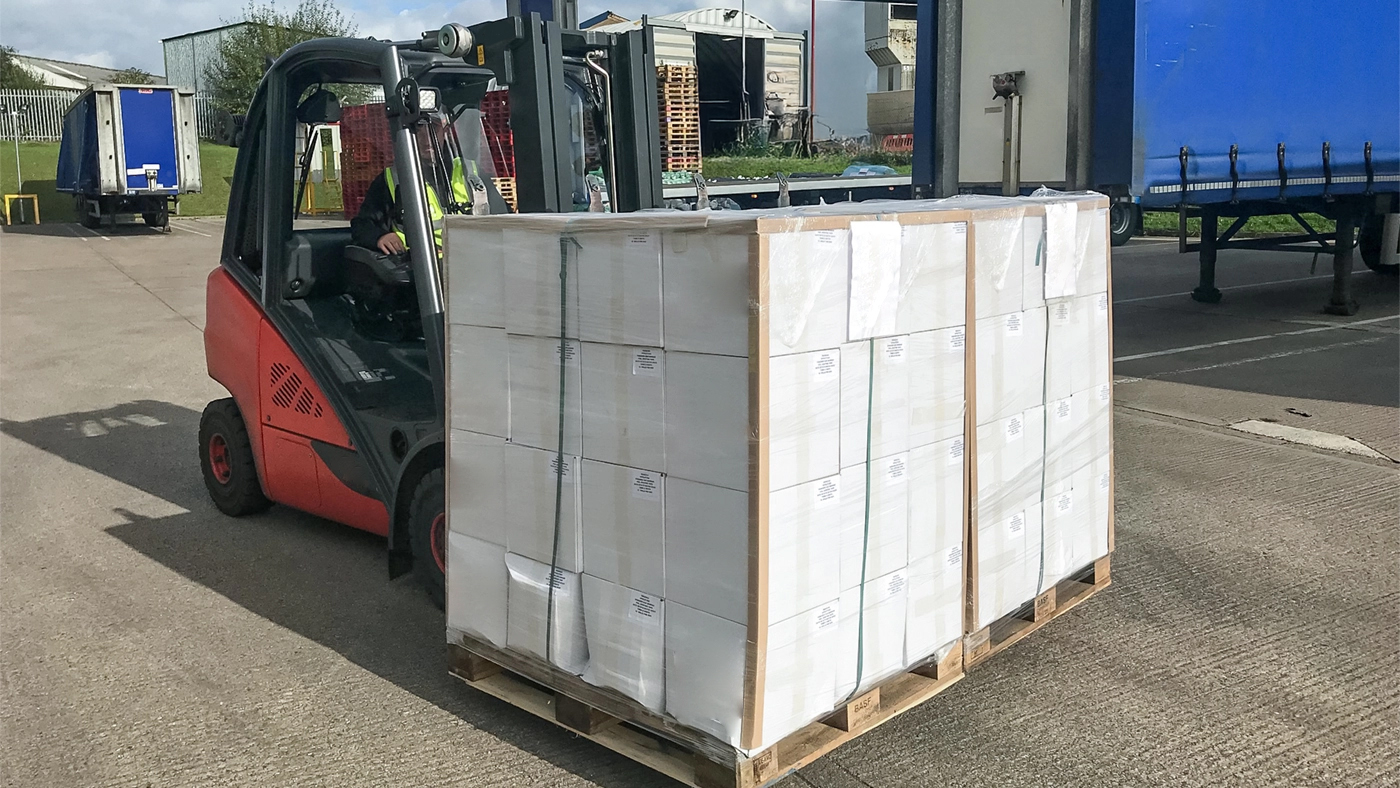

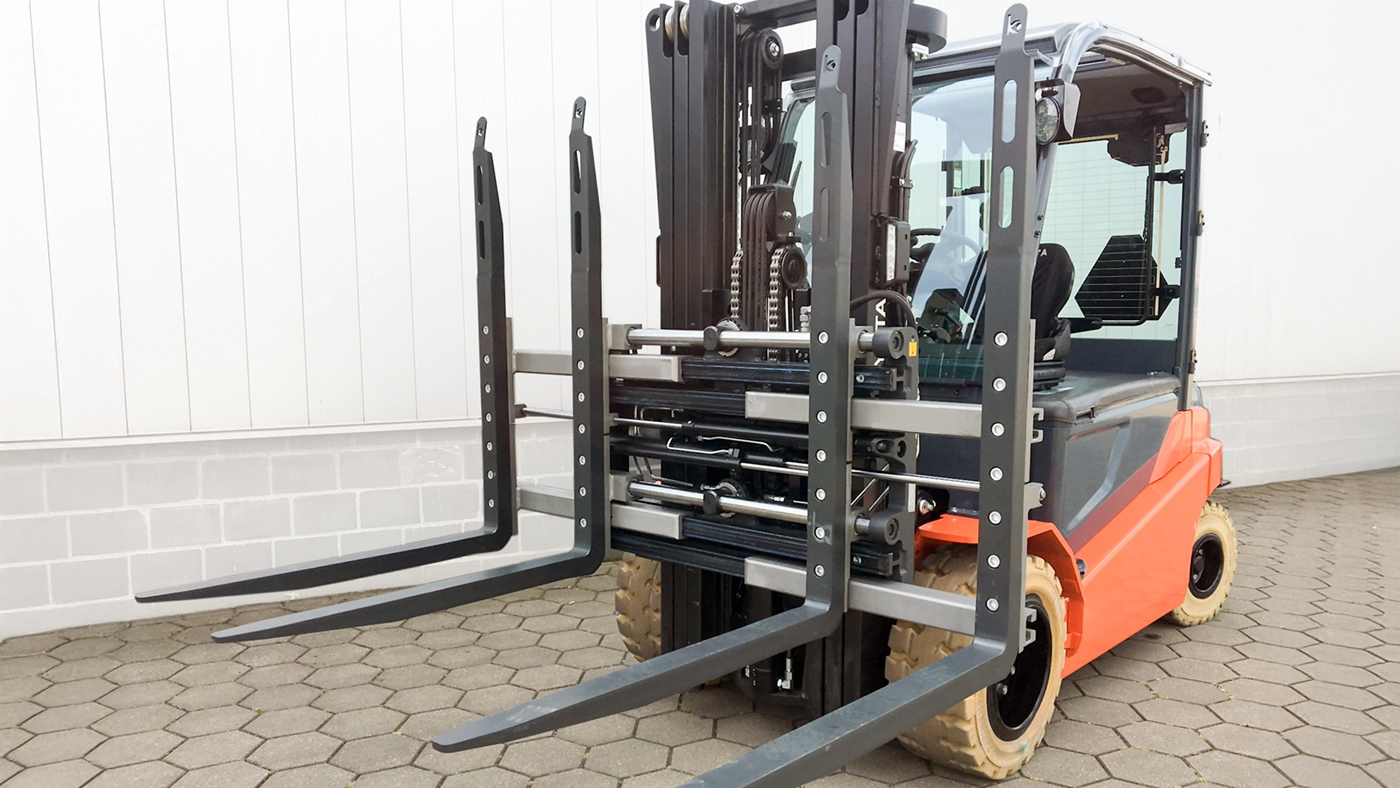

Multi Pallet Handling: 1 or 2 palletts next to each other.
Hydraulic Operation
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Sideshift Functionality
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Suitable for Hazardous Areas
Attachment is available for operation in explosion hazardous areas.
Notes
Please note the additional information below the data table.
