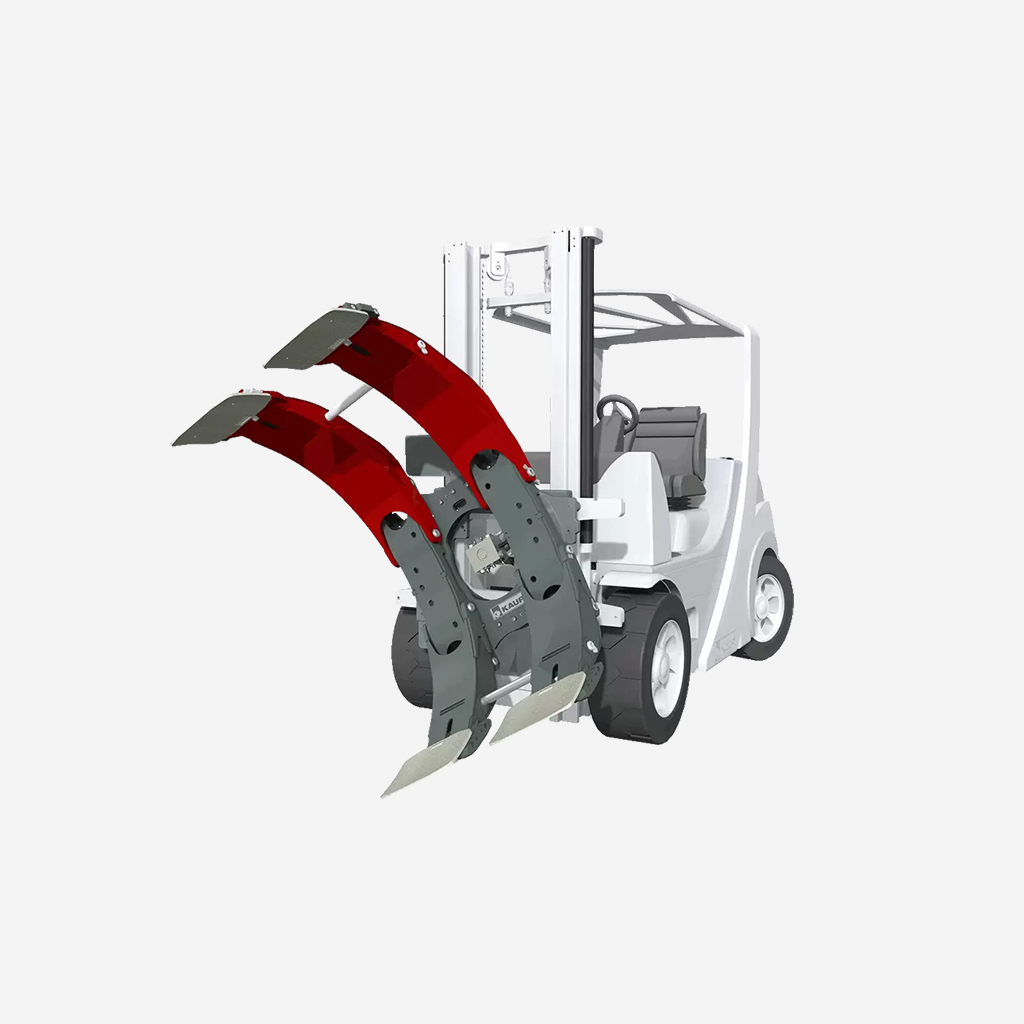

Rotating Roll Clamp
Rotating Roll Clamps of KAUP - also known as Paper roll clamps - can take up all kinds of roles carefully. This makes this attachment everywhere inalienable where the handling of the most different role types is essential.

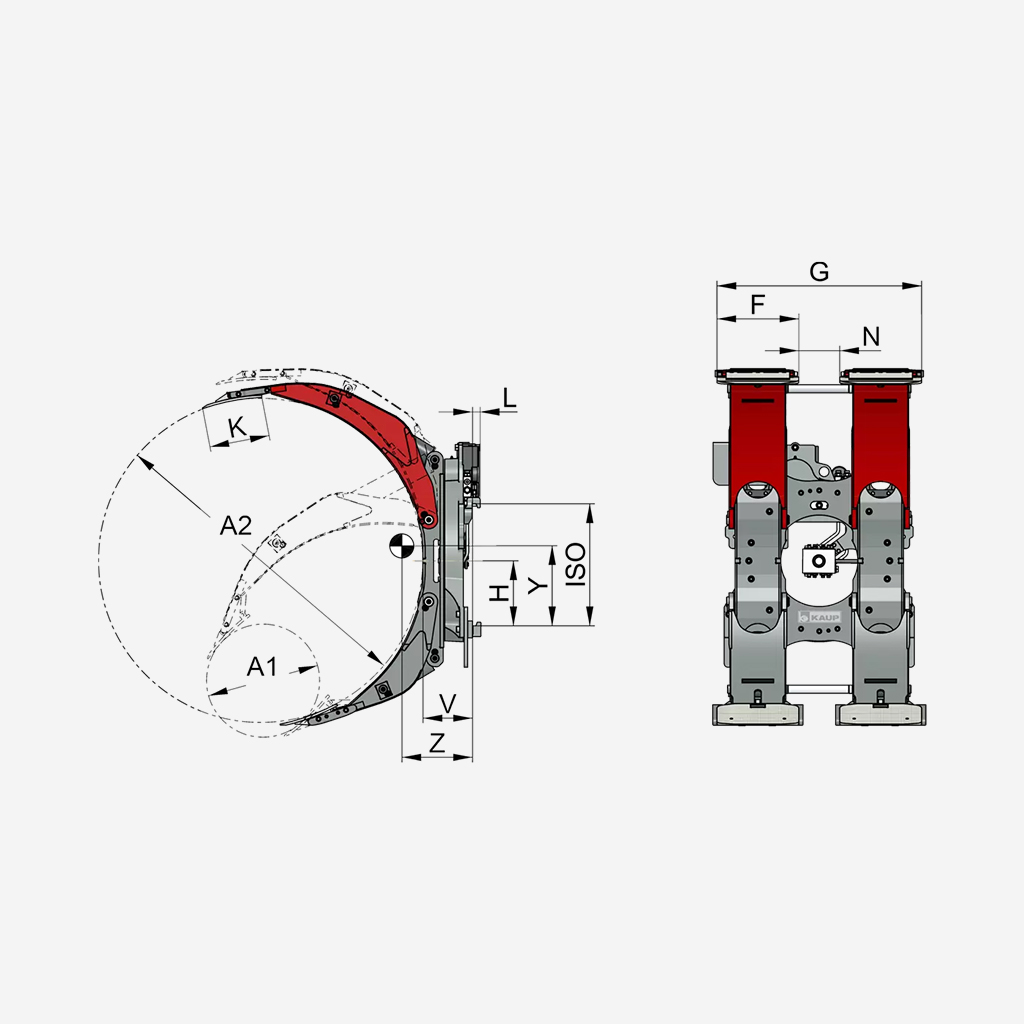

Specification

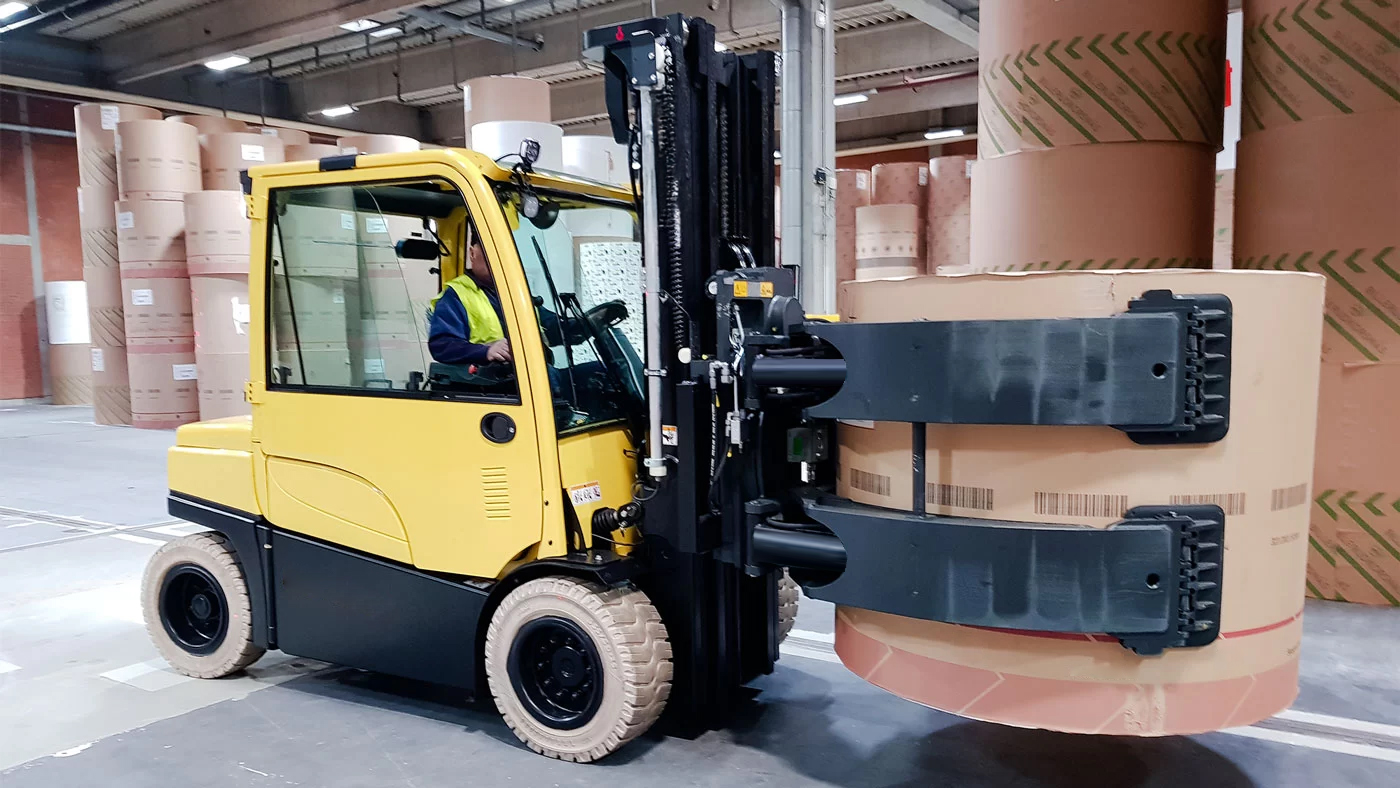

With the view-optimised designed KAUP Rotating Roll Clamp T458BC all kinds of roles can be taken up carefully and be advanced. This makes this attachment everywhere inalienable where the Handling of paper rolls, concrete tubes and similar one is essential.
Qualities
ㆍDifferent contact pad coatings available
ㆍLimitation on rotation 180° optionally
ㆍService friendly

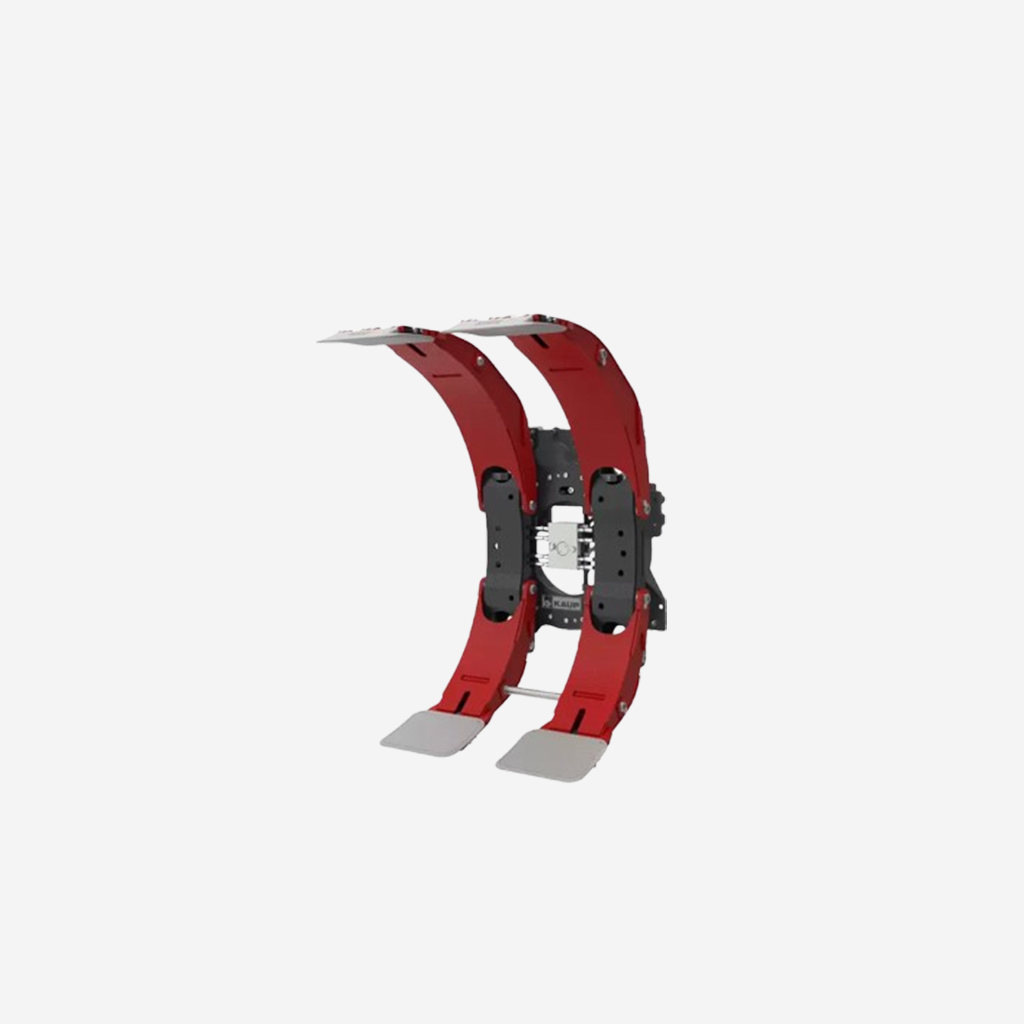

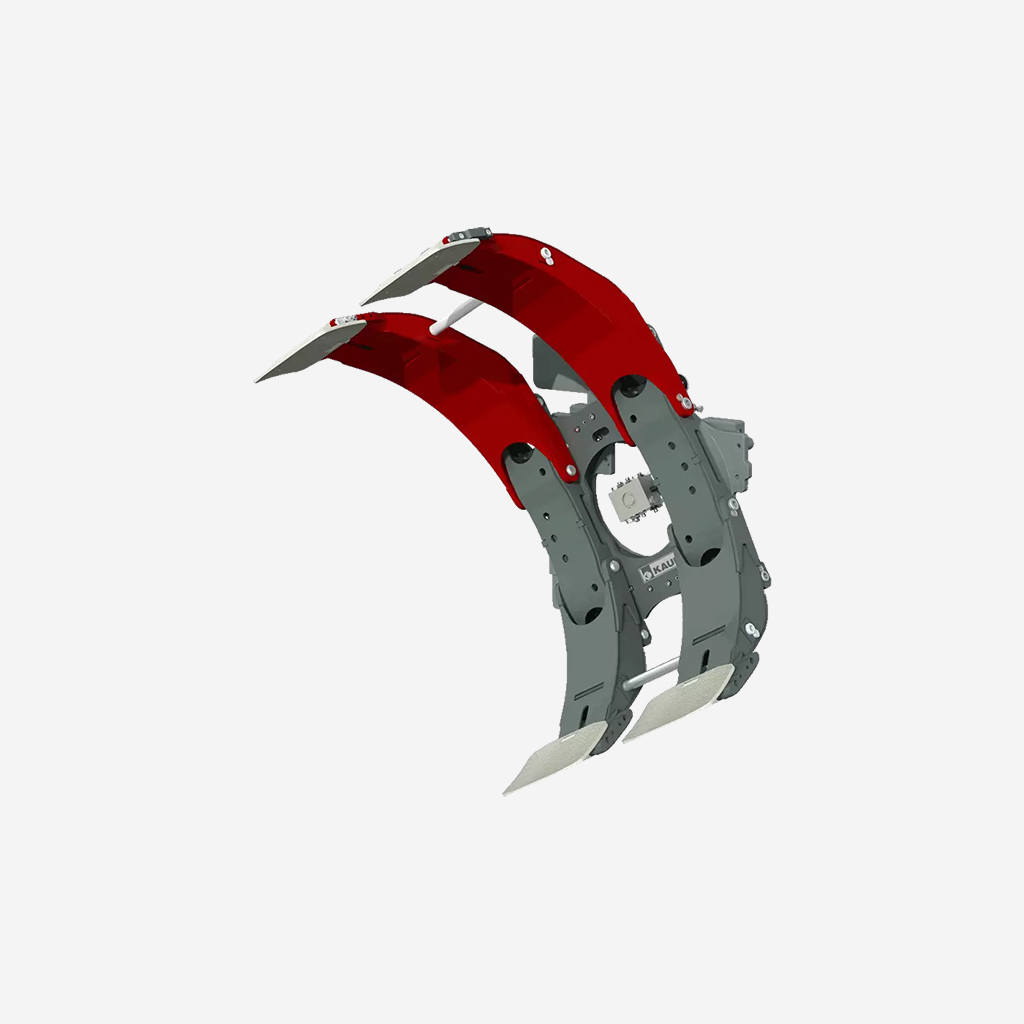

Rotating Roll Clamp T458BC
ㆍOptional: contact pad coatings (standard polyurethane coating Poly-1).
ㆍCapacity related to max. roll diameter.
ㆍFor taking up horizontal rolls, 5-degree mast forward tilt is required.
ㆍOptional: restricted to 180° rotation, continuous contact pads.
ㆍPressure plate coverings see under accessories.
ㆍAttachment with sideshift Model T498BC (add-on price).

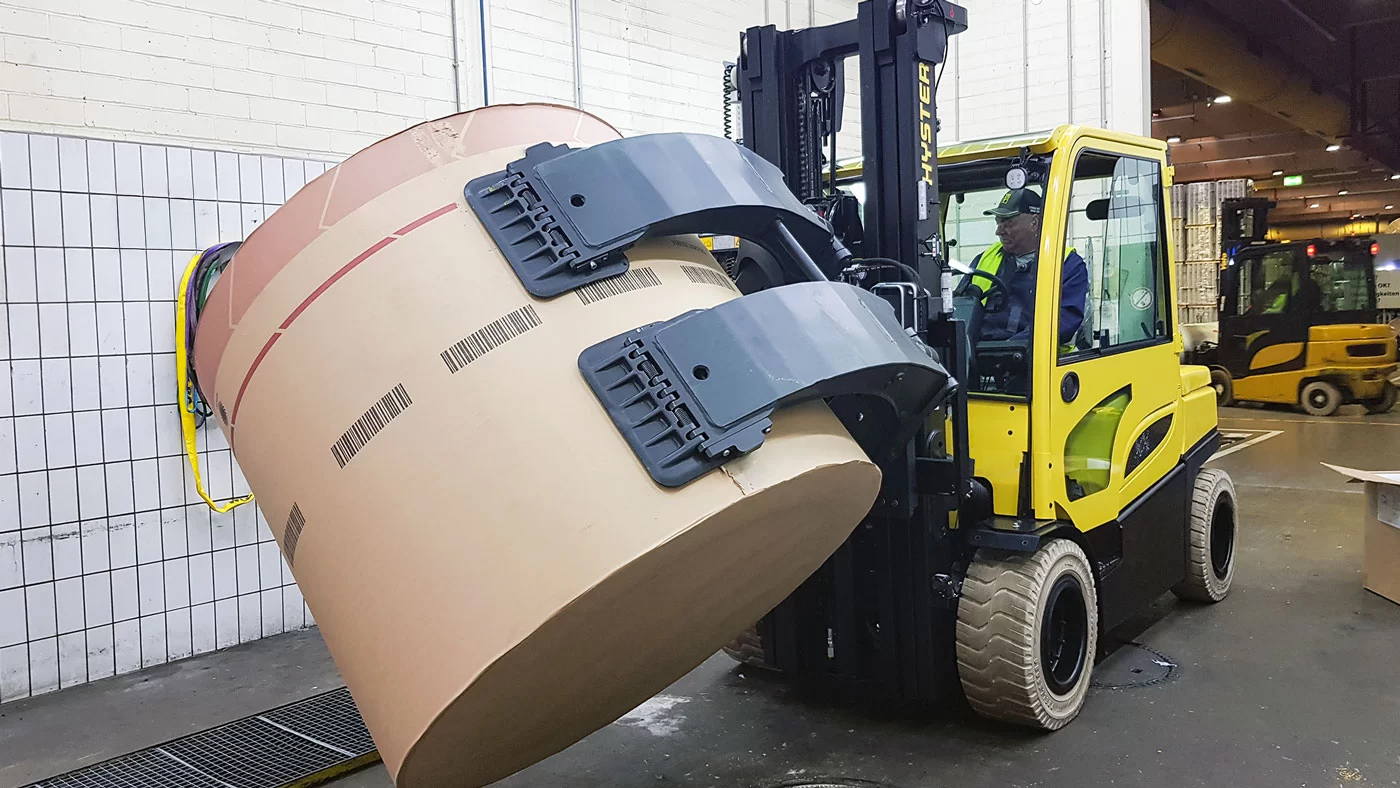

Hydraulic 360° Rotation
Attachment rotates hydraulically by 360° endless in both directions.
Hydraulic Operation
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Sideshift Options
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Contact Pad Options
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Restricted 180° Rotation
Attachment is available restricted to 180° rotation.
Product brochure
Rotating Roll Clamp
