Push-Pulls
KAUP Push-Pulls are a part of the KAUP Pusher range of products. They enable transportation of loads with inexpensive and place saving slip-sheets which are usually made of plastic or cardboard. This KAUP attachment makes expensive and unwieldy wooden pallets superfluous and optimal economical loading of overseas containers possible.

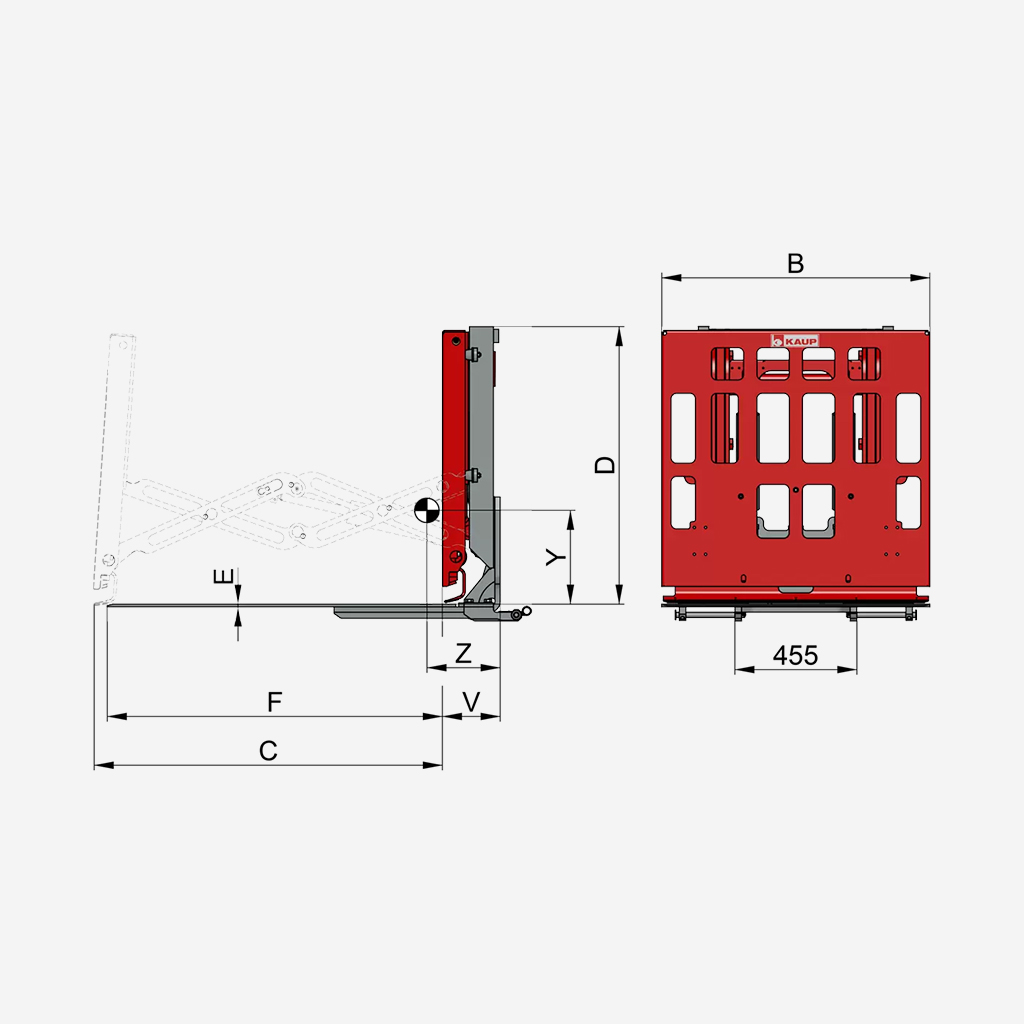

Specification
KAUP Push-Pulls T143SA and Push-Pulls with sheet saver T145SA are the right choice when frequent changes between load handling with standard forks and material handling with push-pulls are carried out because this attachment can be fitted with slip-in pockets onto existing forks.
Like all other KAUP Push-Pulls, this range also has a large surfaced carrying plate for transportation of palletless loads.

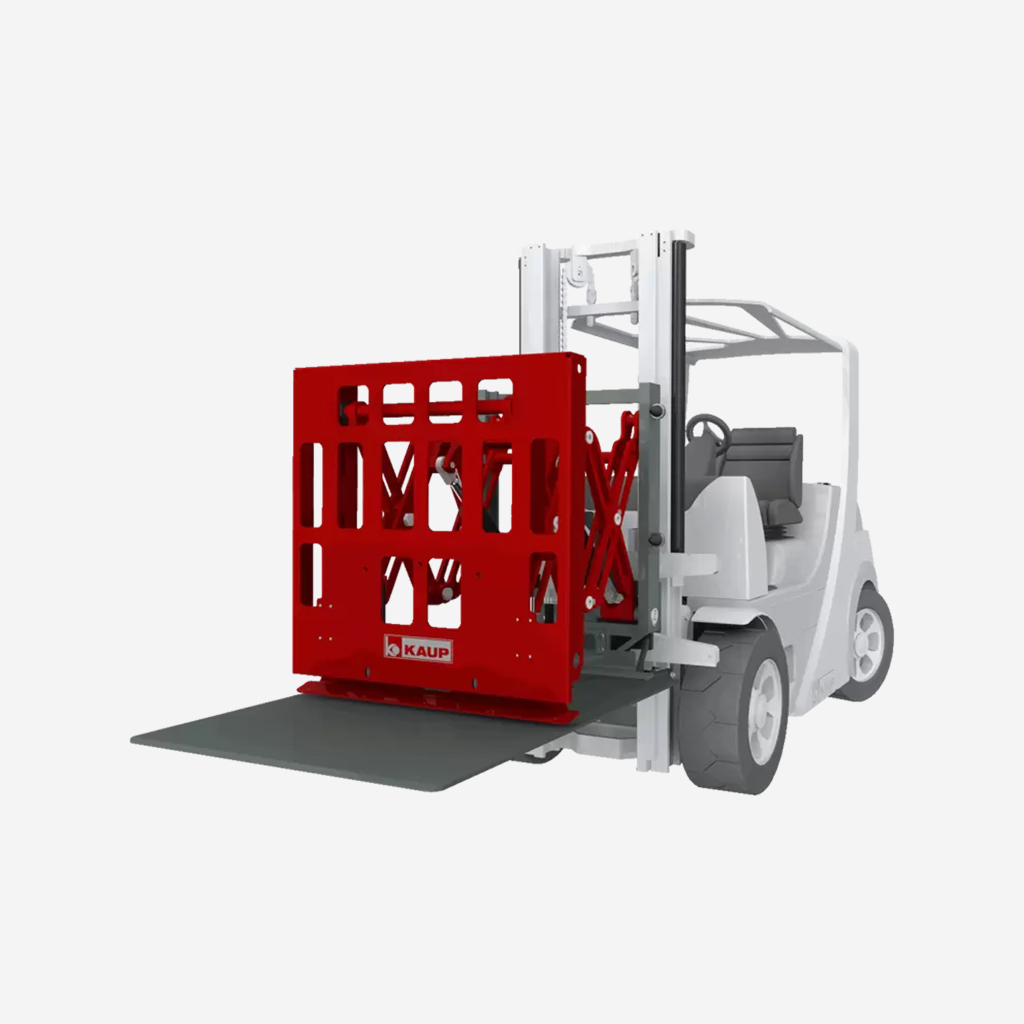

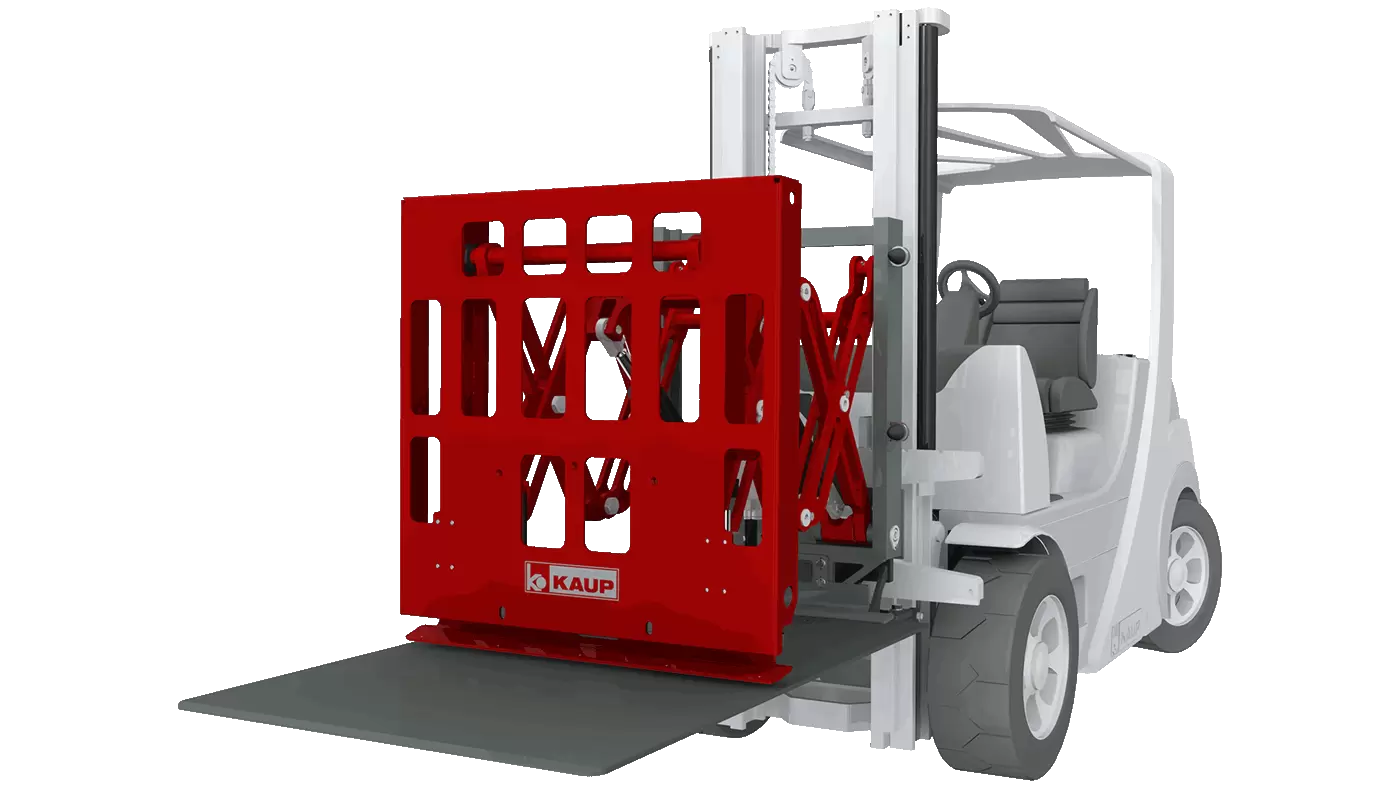

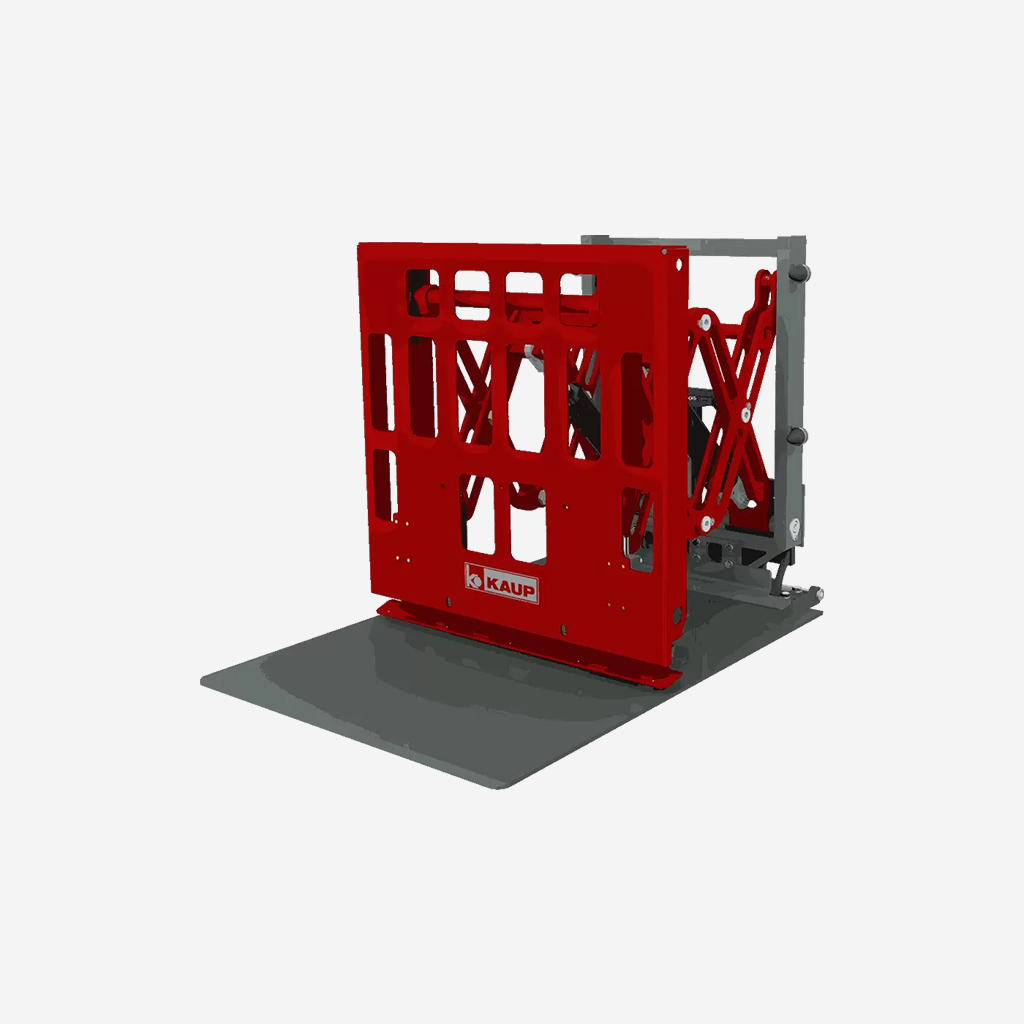

Forklift Push-Pull Attachment T143SA / T145SA
ㆍPush-Pull T143SA - 1 hydraulic function
ㆍPush-Pull with sheet saver T145SA - 1 hydraulic function- and built-in solenoid valve with accessory kit
Hydraulic Operation
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Sideshift Options
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Forks Compatibility
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
