The Rotators of KAUP are the right choice to turn load, to empty container, to tip recumbent load on a palette or to put up a recumbent load. Driven by four possible oil engines and three differently big snail gears running in the oil bath, these attachments can be equipped with fork carriage as well as forks. In addition, they are the base for numerous rotating attachment combination. Beside the normal versions of his Rotators KAUP also has special variations for the fishing economy and for foundries on offer. With the Ladle Tipper of KAUP different foundry ladles can be taken up, be transported as well be emptied to the left, on the right and forwards.
Specification
The KAUP Rotator 360° endless T351 is the entrance in the world of the rotating attachments.
According to application case and customer wish the gear can be positioned at two different places. Differing lost loads and residual capacities are the results.
Qualities
ㆍGood visibility conditions
ㆍLateral supporting fork and load stabilizers optionally

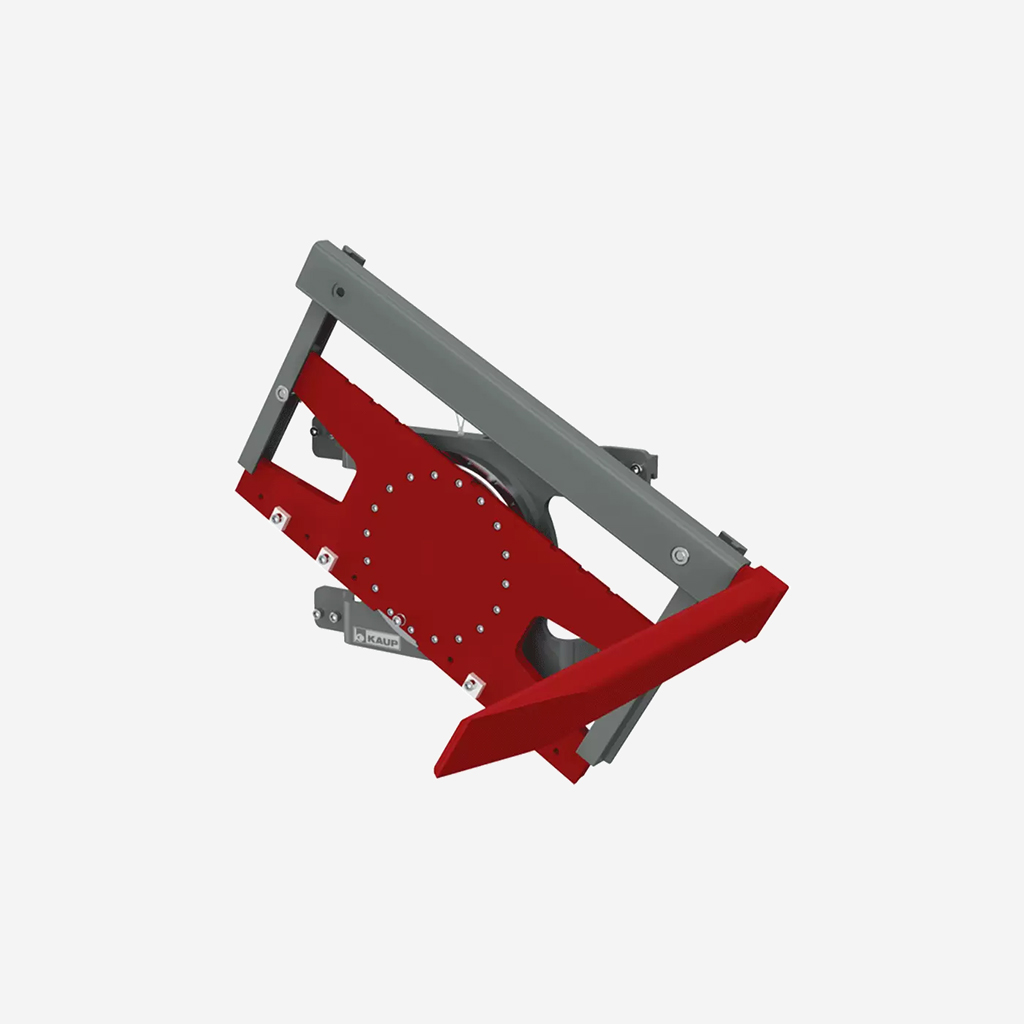

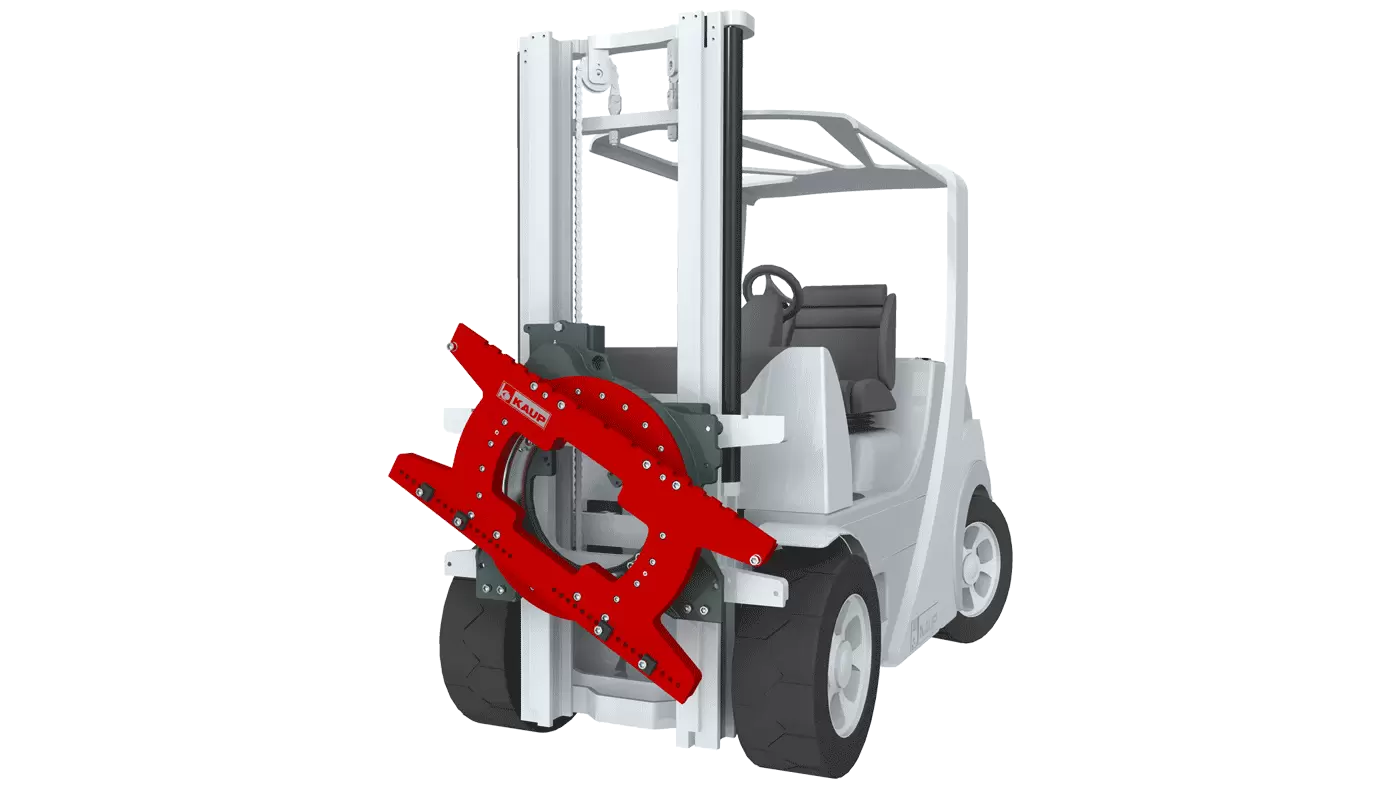

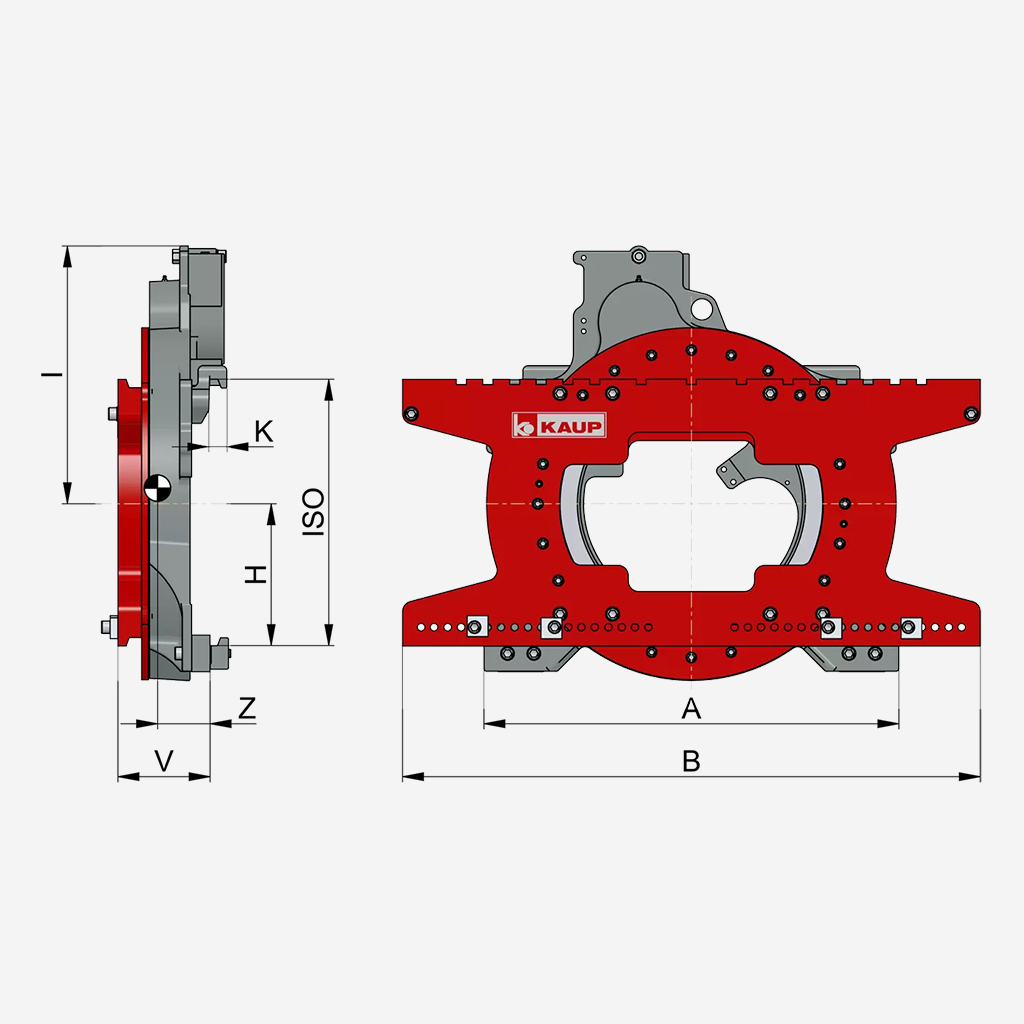

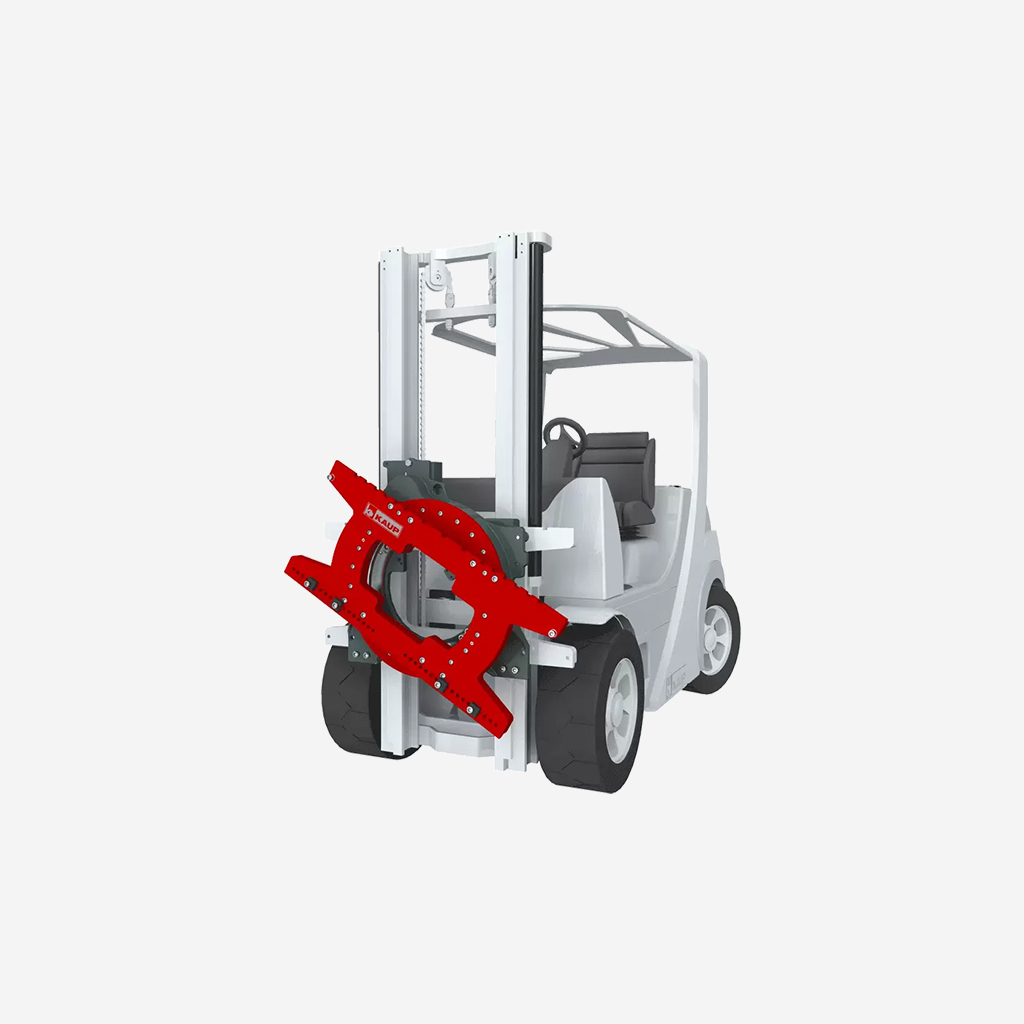

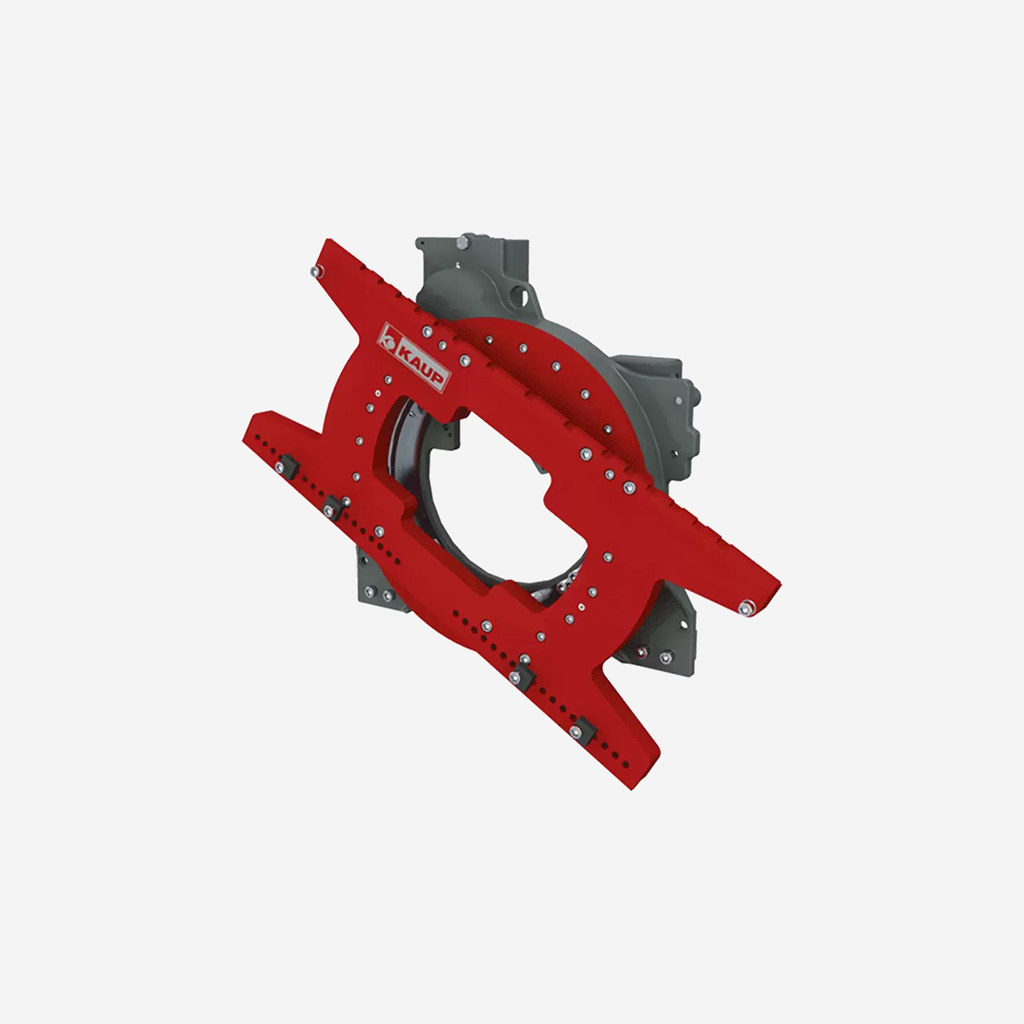

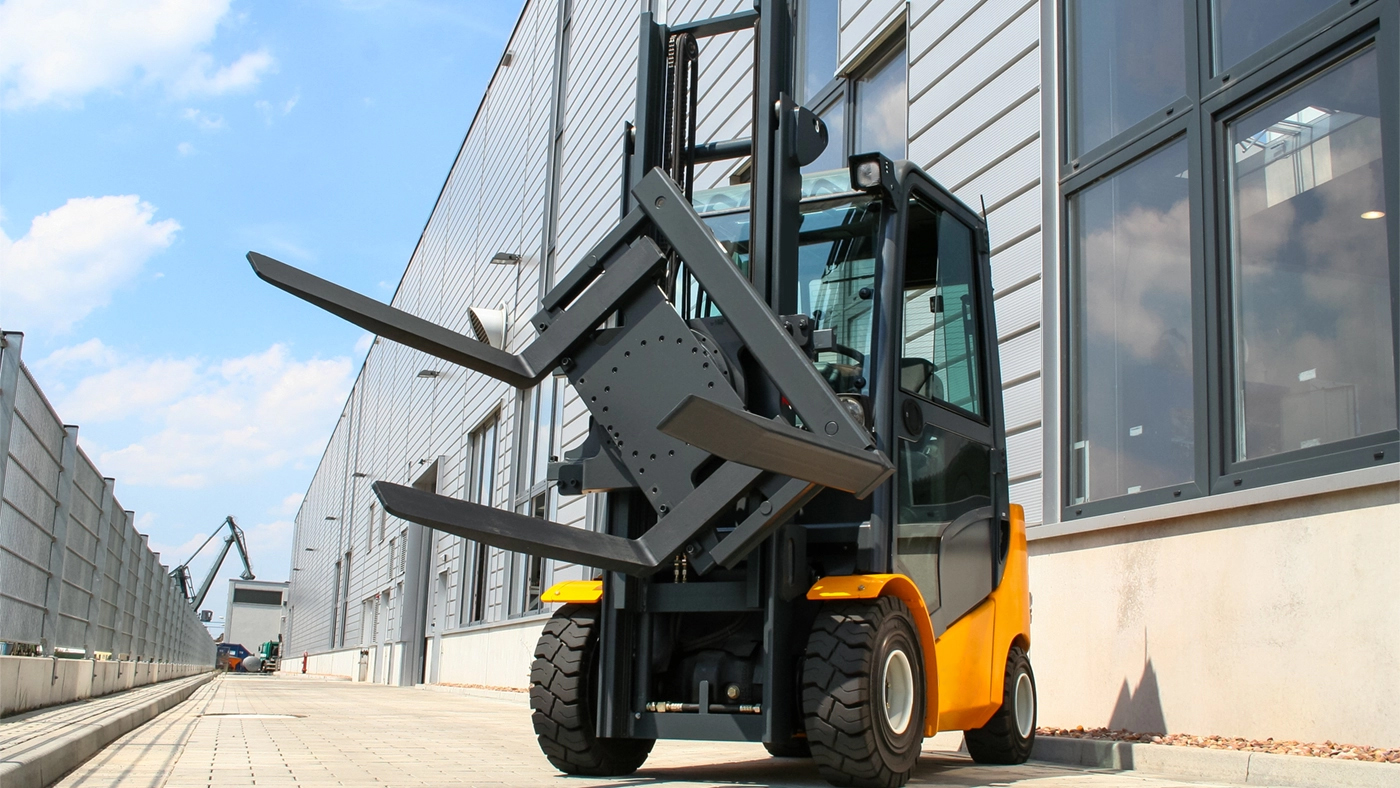

Rotator 360° endless T351
ㆍ1) Fork carriage plate closed.
ㆍRotator 0,8T351.2-SG available upon request.
ㆍRotators with higher rotating speeds available upon request
ㆍOther fork carriage widths available upon request.

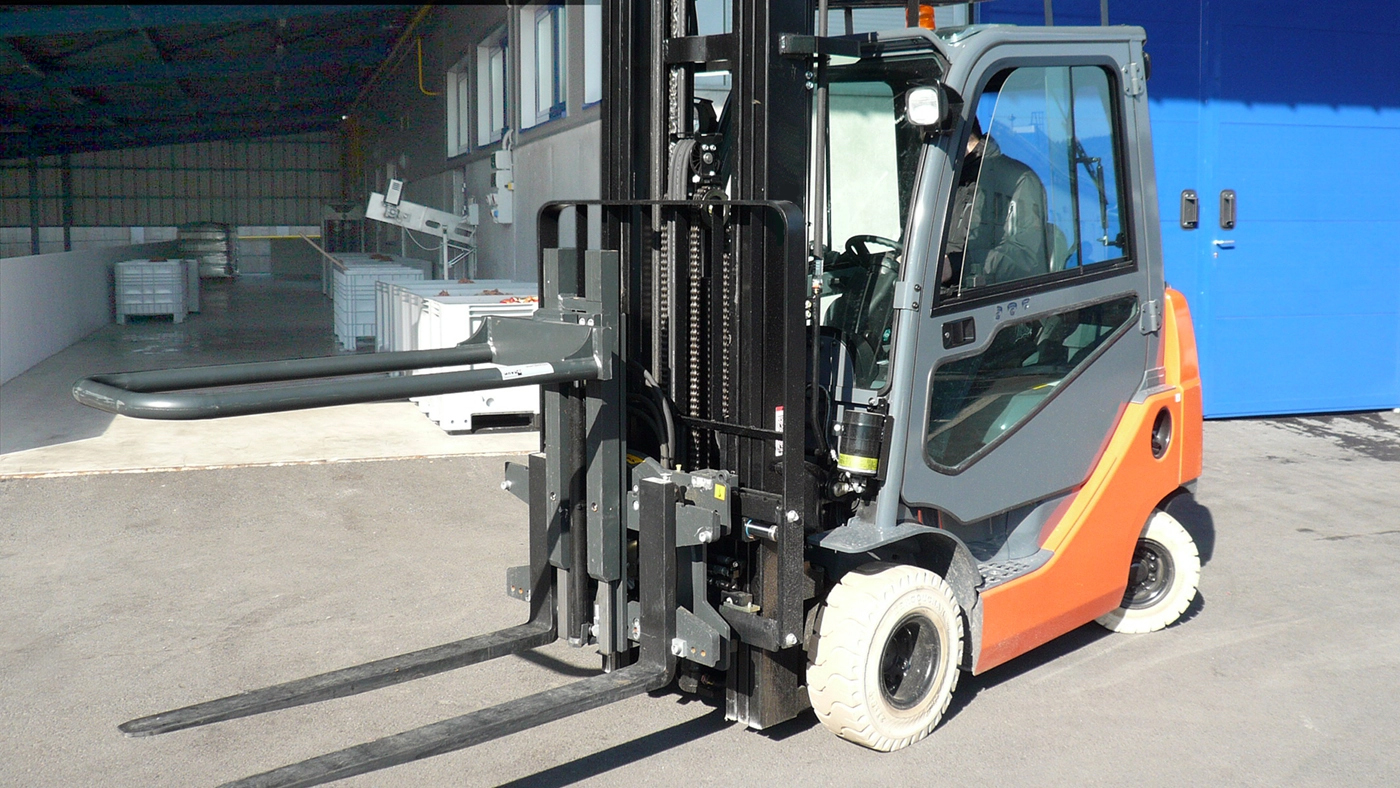

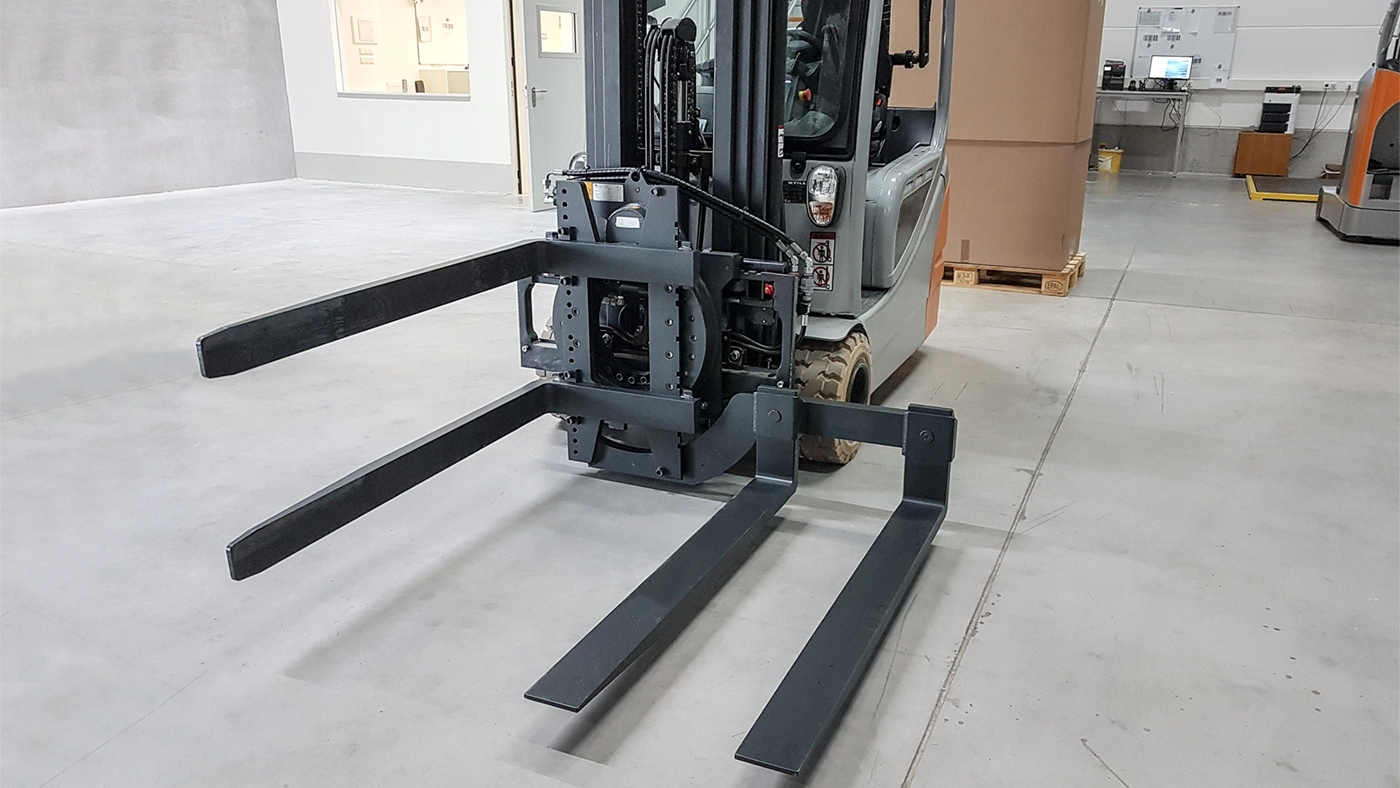

ㆍRemovable lateral supporting fork 800 mm available against add-on price
ㆍRemovable and foldable lateral supporting fork 800 mm available against add-on price

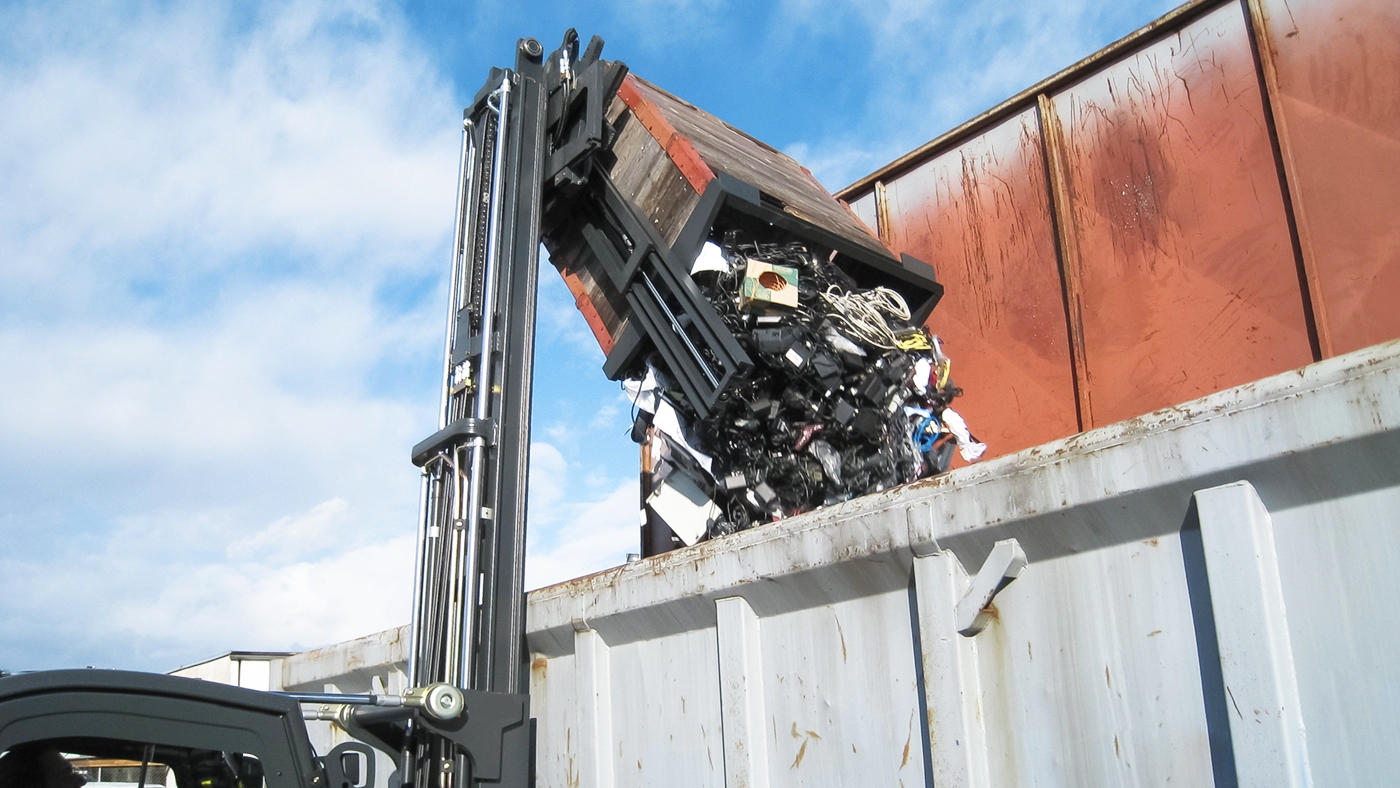

ㆍDownhold T167 to empty metal grid boxes etc on request
ㆍMatching forks for KAUP-Rotators on request.
ㆍWhen forks are used in combination with a Rotator extremely high strain is applied to the lower fork angle when rotating a load which in turn strains the lower brackets.
ㆍFor this type of operation KAUP recommends forks with strengthened lower brackets. Strengthened lower brackets can be ordered for all ISO forks model T180.
Hydraulic 360° Endless Rotation
Attachment rotates hydraulically by 360° endless in both directions.
Optional Sideshift
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Hydraulic Operation
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Explosion-Proof Operation
Attachment is available for operation in explosion hazardous areas.
Fork Compatibility
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Notes
Please note the additional information below the data table.
