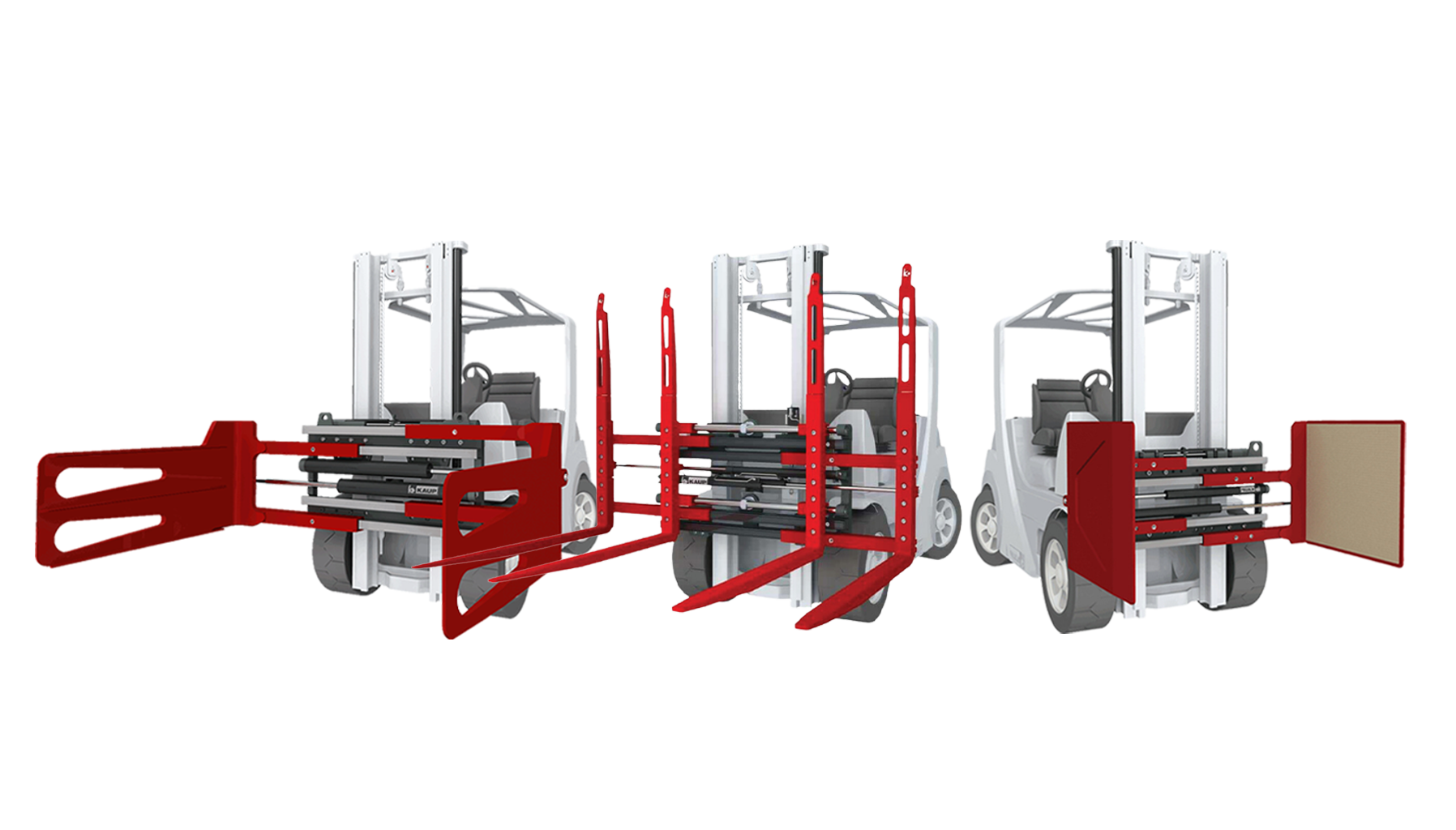

Forklift Attachment
Forklift accessories enhance the vehicles's versality to meet various work needs while reducing the physical strain on personnel. These durable and long-lasting attachments improve effeciency and safety in heavay lifting operations.

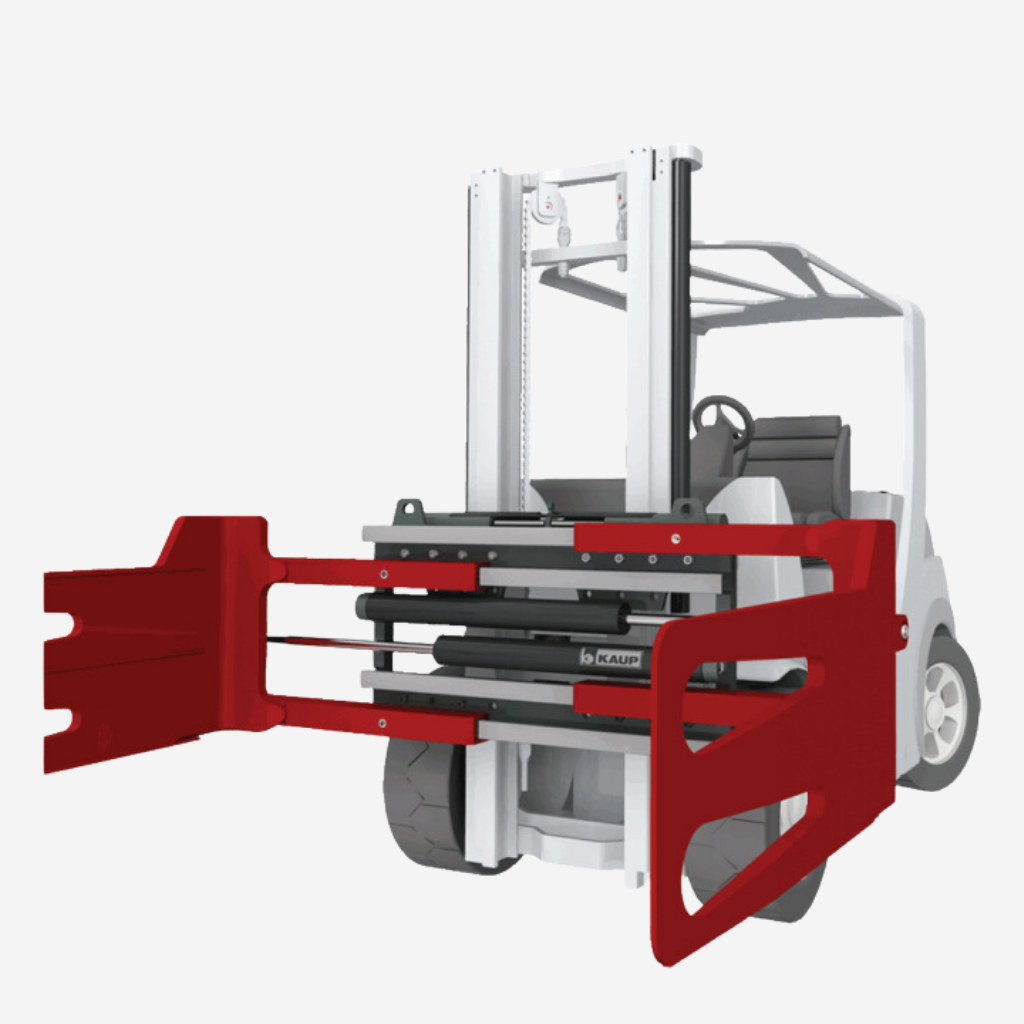

Bale Clamp
Bale Clamp
- Excellent price-performance ratio
- Very good visibility
- Solid strengthened design with KAUP clamp profiles from T-profiles and C- profiles
- Solid slim arm design
- Independent sideshift serially
- Combination with KAUP Rotators possible
- Customer specified modifications feasible
- Bale clamps with higher capacities available upon request.
- Variations in width, opening ranges and arm dimensions available upon request.
- Also available without sideshift, model T403
- Also available with 1 arm oscillating, model T413B-1.
- Special version for Big Bags, based on the KAUP Bale
- Clamp, are also available.
- Load Backrest see model T179.
Sideshift
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. + 100 mm) is always avablable independent of fork or arm position (with clamps or fork positioners).
Hydraulic Operation
Attachment is operated hydraulically, i.e. supplied with oil from the forkiift truck's hydraulic system. Truck requires two addional hydraulic functions.
Load Backrest Options
Attachment can be fitted with load backrest model T479. The load backrest model Y479.1 is suitable for fork positioners 11608 and T466B up to 4.8T.
Cylinder & Sideshifter Protection
Attachment is available with cylinder and sideshifter protection.
Toe-In Design
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.

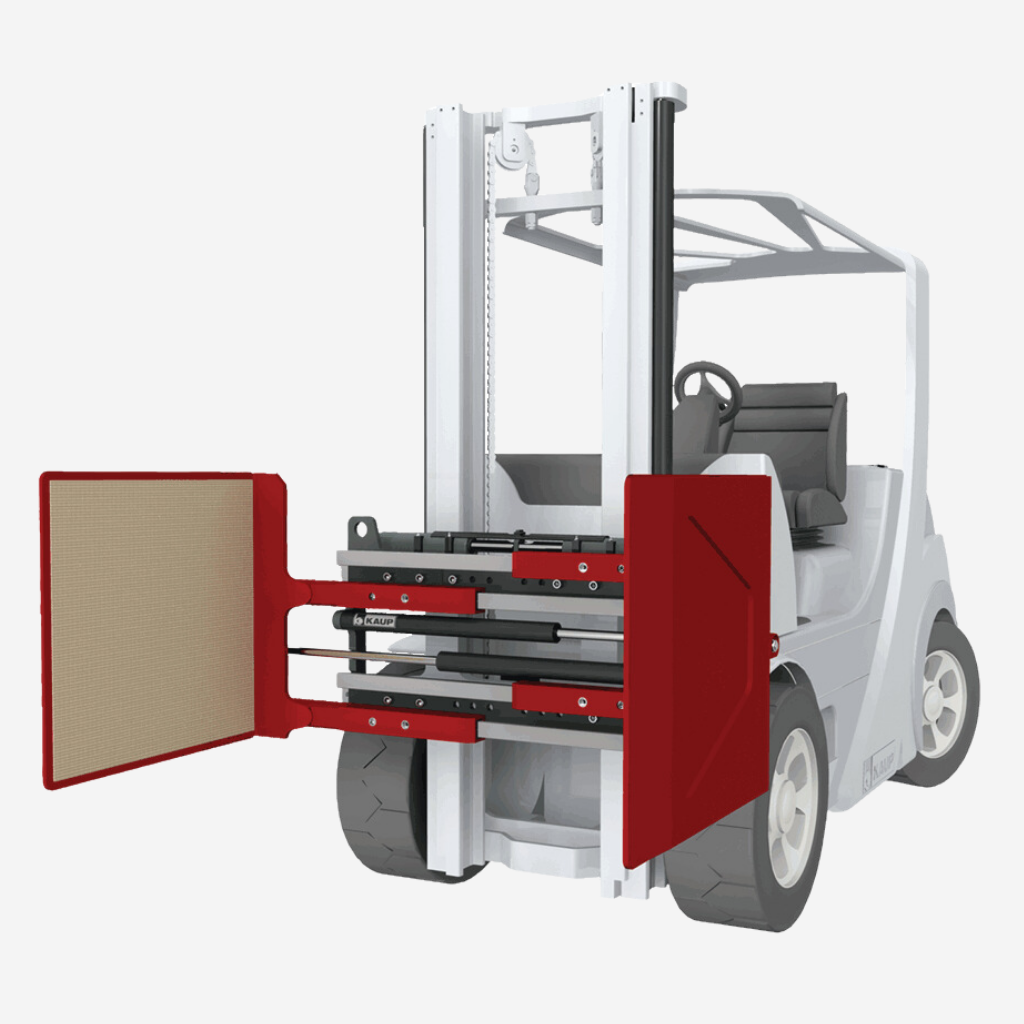

Carton Clamp
Carton Clamp
- Low lost load - very good residual capacities
- Very good visibility conditions
- Very slender clamp arms
- Independent sideshift serially
- Load backrest optionally
- Add-on price for 100mm armlength / -height on request
- Option: with automatic pressure switching (sensor technology) or attachment available with Smart Load Control (SLC), an autonomous system for controlling the clamp force (models 2T after design adaptation).
- For contact pad coatings see accessories in the pricelist
- Also available with 2 contact pads on the swivelling arm - model T413G-2L / T403G-2L
- Also available without sideshift, model T403G-1L Load Backrest see model T179.
Sideshift Function
Attachment has separate sideshift as standard. The maximum
allowable sideshift stroke (e.g. + 100 mm) is always available
independent of fork or arm position (with clamps or fork
positioners).
Hydraulic Operation
Attachment is operated hydraulically, i.e. supplied with oil from the
forklift truck's hydraulic system. Truck requites two addional
hydraulic functions.
Smart Load Control (SLC)
Attachment is available with Smart Load Control (SLC), an
autonomous system for controlling the clamp force. The required
pressures are always adjusted autonomously depending on the
load.
Load Backrest Options
Attachment can be fitted with load backrest model T479. The load
backrest model T479.1 is suitable for fork positioners T160B and
T466B up to 4.8T.
Contact Pads
Attachment can be fitted with different types of contact pad
surfaces specifically suited to the application.
Automatic Pressure Adjustment
Attachment is available with automatic pressure adjustment.
Toe-In Design
Attachment is designed with toe-in on the tips which should be
taken into account when choosing the opening range.

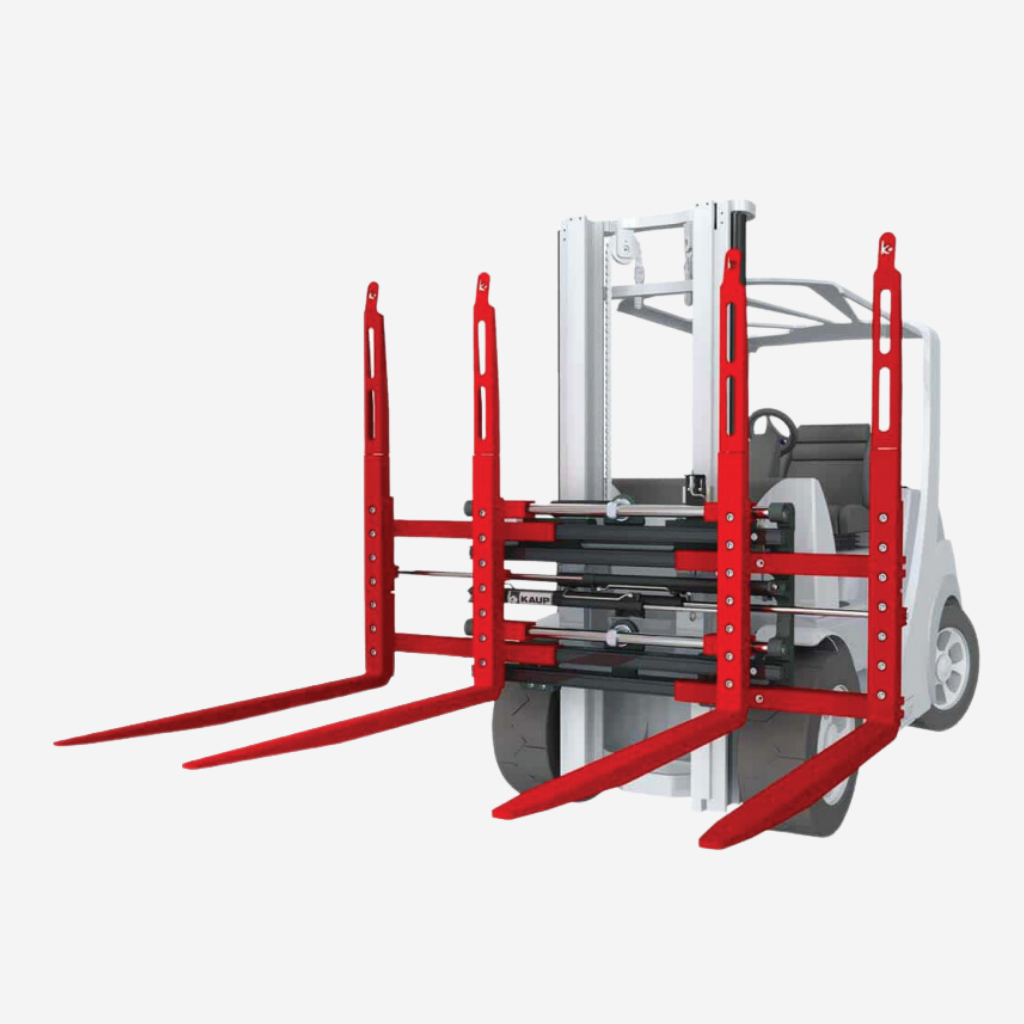

Multi Pallet Handler
Multi Pallet Handler
- Double Pallet Handler for heavy duty tasks
- Excellent visibility conditions
- Good residual capacity
- Screw-on forks serially
- Synchronized for quicker working speeds
- Independent sideshift serially
- Optional: single control of seperate fork pairs - adjustment of opening range to suit different types of pallets
- Measurement „C” = alternatively 560 / 650 / 700 mm mechanically or hydraulically adjustable (solenoid valve required).
- Measurement „H” = standard height 1.400 mm, other lengths and forms upon request.
- Double solenoid valve for additional individual adjustment for each pair of forks available upon request. (add-on price)
- Optional with fork thickness 40 mm. (add-on price)
- Fork length optional 1.000 mm, 1.150 mm or 1.200 mm. (no add-on price)
- for handling of europallets crosswise we recommend the 1.400 mm wide body version
- Standard with wider fork shanks.
- Locating claw on fork tip available upon request. Double Pallet Handler with Load Stabilizer available upon request.
Handling Capacity
Multi Pallet Handling: 1 or 2 palletts next to each other.
Hydraulic Operation
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck's hydraulic system. Truck requires two additional hydraulic functions.
Sideshift
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. + 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Explosion-Proof Operation
Attachment is available for operation in explosion hazardous areas.
